MHC3216S Datasheet - INPAQ

MHC3216S Chip Ferrite Bead

INPAQ TECHNOLOGY CO., LTD. RoHS Pb Chip Ferrite Bead for High Current (MHC-S Series) Engineering Spec. PRODUCT DETAIL Z DCR IDC Electrical Characteristics Ω TEST FREQ: (Ref. Page 6~8) MHz Ω (Ref. Page 6~8) (Ref. Page 6~8) mA TEST LEVEL: (Ref. Page 6~8) 250 mV Test Instruments HP4291B RF IMPEDANCE / MATERIAL ANALYZER HP4338A/B MILLIOHMMETER Agilent 8720ES S-PARAMETER NETWORK ANALYZER HP6632B SYSTEM DC POWER SUPPLY SHAPES AND DIMENSIONS.

MHC3216S Datasheet (268.77 KB)

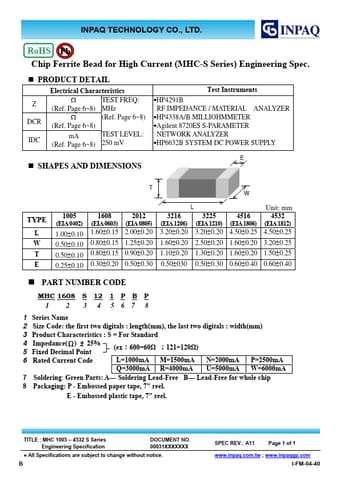

Preview of MHC3216S PDF

Datasheet Details

Part number:

MHC3216S

Manufacturer:

INPAQ

File Size:

268.77 KB

Description:

Chip ferrite bead.
