Datasheet Details
| Part number | WPA252010S |
|---|---|
| Manufacturer | INPAQ |
| File Size | 569.59 KB |
| Description | Power Inductor |
| Datasheet |
 WPA252010S-INPAQ.pdf
|
| Part number | WPA252010S |
|---|---|
| Manufacturer | INPAQ |
| File Size | 569.59 KB |
| Description | Power Inductor |
| Datasheet |
WPA252010S-INPAQ.pdf
|

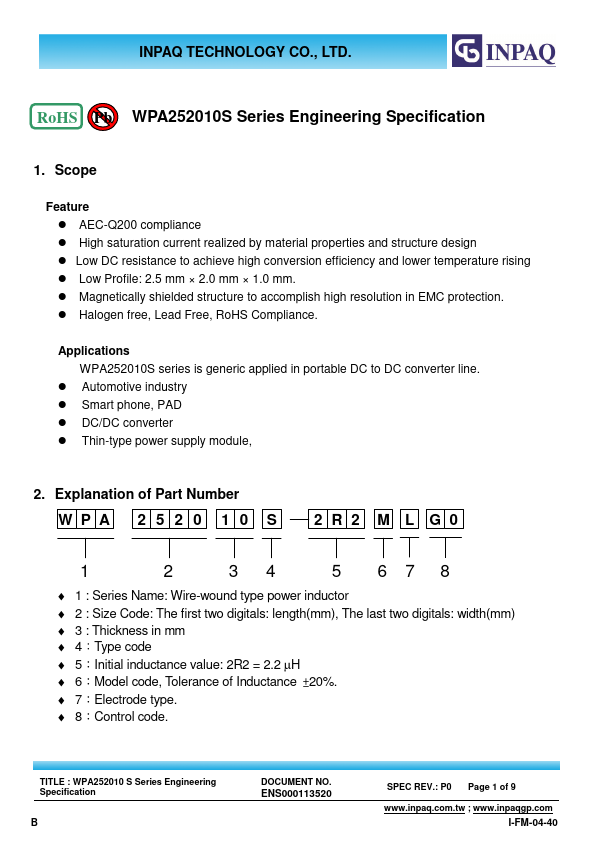

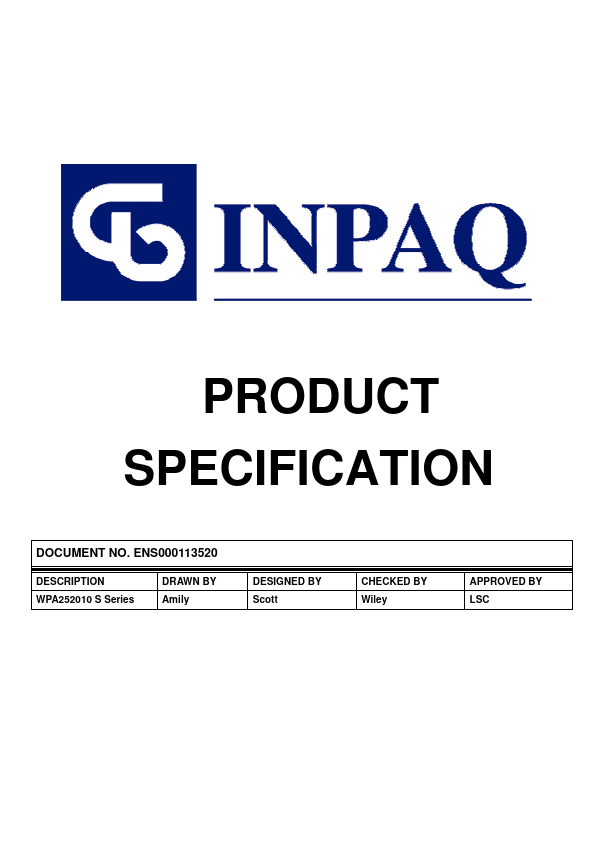

WPA252010 S Series DRAWN BY Amily DESIGNED BY Scott CHECKED BY Wiley APPROVED BY LSC INPAQ TECHNOLOGY CO., LTD.RoHS Pb WPA252010S Series Engineering Specification 1. Scope Feature AEC-Q200 compliance High saturation current realized by material properties and structure design Low DC resistance to achieve high conversion efficiency and lower temperature rising Low Profile: 2.5 mm × 2.0 mm × 1.0 mm.Magnetically shielded structure to accomplish high resolution in EMC protection.Halogen fr
