CFPS-73 - Crystal Clock Oscillator

Description

Standard 7 x 5mm crystal oscillator Ceramic package with a seam sealed metal lid, hermetically sealed Stock parts are available Fast Make capability: CFPP-73 series programmable oscillators are the nearest equivalent fast make model Frequency Parameters Frequency Frequency Stability Ageing 500.0kH

📥 Download Datasheet

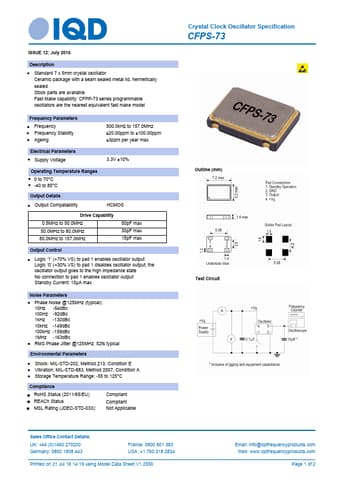

Datasheet preview – CFPS-73

Datasheet Details

Part number CFPS-73
Manufacturer IQD
File Size 0.98 MB
Description Crystal Clock Oscillator
Datasheet download datasheet CFPS-73 Datasheet
Additional preview pages of the CFPS-73 datasheet.

📁 Similar Datasheet

  • CFPS-73 - (CFPS-72 / CFPS-73) Semtech Reference (Semtech Corporation)
  • CFPS-72 - (CFPS-72 / CFPS-73) Semtech Reference (Semtech Corporation)
  • CFPS-74 - Crystal Clock Oscillator (ETC)
  • CFP2200 - 2V 200Ah Battery (FirstPower)
  • CFP8N80 - N-Channel MOSFET (CRE)
  • CFPA10MD - Glass Passivated Sintered Fast Recovery Rectifier (Comchip Technology)
  • CFPA10MM - Glass Passivated Sintered Fast Recovery Rectifier (Comchip Technology)
  • CFPX-5 - CRYSTALS (ETC)
Other Datasheets by IQD

Full PDF Text Transcription

Click to expand full text
ISSUE 12; July 2016 Description Standard 7 x 5mm crystal oscillator Ceramic package with a seam sealed metal lid, hermetically sealed Stock parts are available Fast Make capability: CFPP-73 series programmable oscillators are the nearest equivalent fast make model Frequency Parameters Frequency Frequency Stability Ageing 500.0kHz to 157.0MHz ±20.00ppm to ±100.00ppm ±3ppm per year max Electrical Parameters Supply Voltage 3.3V ±10% Operating Temperature Ranges 0 to 70°C -40 to 85°C Output Details Output Compatability HCMOS Drive Capability 0.5MHz to 50.0MHz 50.0MHz to 80.0MHz 80.0MHz to 157.
