MMB0207, (MM Series) Cylindrical General Purpose Surface Mount Power Resistor

CYLINDRICAL GENERAL PURPOSE SURFACE MOUNT POWER RESISTOR METAL GLAZE™ ISO-9001 Registered MM SERIES * * * * Up to 2 watts 0.1 ohm to.

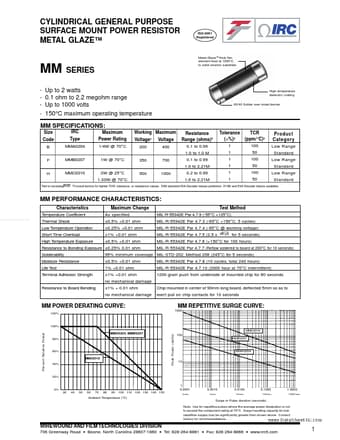

datasheet Preview Page 1 from Datasheet4u.com

MMB0207_IRC.pdf

MMB0207 Datasheet Preview — Preview of MMB0207 PDF

Datasheet Details

Part number:

MMB0207

Manufacturer:

IRC

File Size:

84.24 KB

Description:

(MM Series) Cylindrical General Purpose Surface Mount Power Resistor

Applications

* By placing the MM on the solder paste while the paste is in the "tacky" state, the MM will be held in position until solder reflow begins. The pad design then uses the surface tension of the molten solder to pull the component to the center of the solder pad. The placement of a via rising above the
