SW6208 - highly integrated power management

Datasheet Summary

Description

The SW6208 is a highly integrated power management IC for fast charge power bank application, and supports A+A+B+C+L five ports.

It integrates 5A switching charger, 22.5W synchronous boost, PPS/PD/QC/AFC/FCP/SCP/PE/SFCP fast charge protocol, fuel gauge, segment/led driver and power controller.

Features

  • Switching Charger.
  • Current up to 5A , Efficiency up to 96%.
  • Support 4.2/4.35/4.4/4.5V Battery Voltage.
  • Support JEITA.
  • Thermal Regulation.
  • Synchronous Boost.
  • Power up to 22.5W, Efficiency up to 95%.
  • Load Insert Detect and Light Load Detect.
  • Support Wireless Charge Mode.
  • Support Small Current Charge Mode.
  • Output Fast Charge Protocol.
  • Support PPS/PD3.0/PD2.0.
  • Support QC4+/QC4/QC3.0/.

📥 Download Datasheet

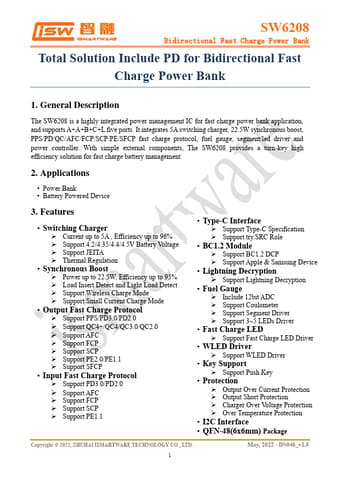

Datasheet preview – SW6208

Datasheet Details

Part number SW6208
Manufacturer ISMARTWARE
File Size 965.82 KB
Description highly integrated power management
Datasheet download datasheet SW6208 Datasheet
