IS206 Datasheet, Output, ISOCOM COMPONENTS

IS206 Features

• Output l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Current Transfer Ratio (50% min) l High Isolation Vo

PDF File Details

Part number:

IS206

Manufacturer:

ISOCOM COMPONENTS

File Size:

74.59kb

Download:

📄 Datasheet

Description:

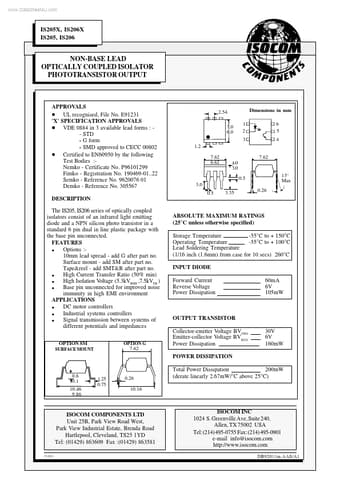

(is205 / is206) non-base lead optically coupled isolator phototransistor output. The IS205, IS206 series of optically coupled isolators consist of an infrared light emitting diode and a NPN silicon photo transistor

IS206 Application

• Applications l DC motor controllers l Industrial systems controllers l Signal transmission between systems of different potentials and impedances OP
