ISD204, ISD204X Datasheet - ISOCOM COMPONENTS

ISD204 LOW INPUT CURRENT PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

www.DataSheet4U.com IS204X,ISD204X,ISQ204X3,2,1 IS204,ISD204,ISQ204-3,-2,-1 LOW INPUT CURRENT PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS APPROVALS l UL recognised, File No. E91231 'X' SPECIFICATION APPROVALS l VDE 0884 in 3 available lead forms : - STD - G form - SMD approved to CECC 00802 l IS204X is certified to EN60950 by the following Test Bodies :Nemko - Certificate No. P01102464 Fimko - Certificate No. FI18166 Semko - Reference No. 0202037/01-22 Demko - Certificate No. 311158-01 l BSI .

ISD204 Features

* l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l Low input current 0.5mA IF l High Current Transfer Ratio (50% min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO (70V min) APPLICATIONS l Computer terminals l

ISD204X_ISOCOMCOMPONENTS.pdf

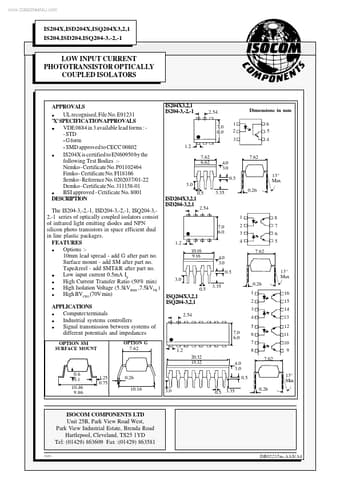

ISD204 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISD204, ISD204X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISD204, ISD204X

Manufacturer:

ISOCOM COMPONENTS

File Size:

103.70 KB

Description:

Low input current phototransistor optically coupled isolators.

Note:

This datasheet PDF includes multiple part numbers: ISD204, ISD204X.
Please refer to the document for exact specifications by model.
