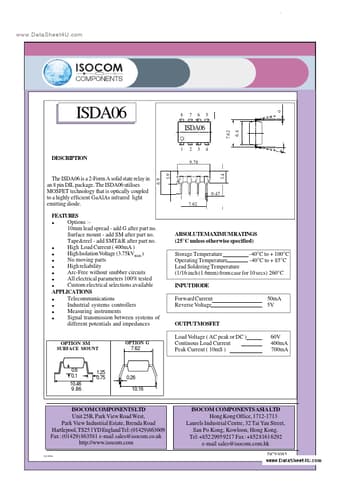

ISDA06 Datasheet - ISOCOM COMPONENTS

ISDA06 Telecommunications

3.9 Dimensions in mm 8 7 6 5 7.62 6.4 ISDA06 1 2 3 4 1 2 3 7.62 6 5 4 9.78 3.4 The ISDA06 is a 2-Form A solid state relay in an 8 pin DIL package. The ISDA06 utilises MOSFET technology that is optically coupled to a highly efficient GaAlAs infrared light emitting diode. 6.9 0.47 7.62 FEAT.

ISDA06 Features

* l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Load Current ( 400mA ) l High Isolation Voltage (3.75kVRMS ) l No moving parts l High reliability l Arc-Free without snubber circuits l All electrical parameters 100%

ISDA06 Datasheet (97.72 KB)
