ISP825X, ISP815 - (ISP8x5) HIGH DENSITY MOUNTING PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS

ISP825X Description

www.DataSheet4U.com ISP815X, ISP825X, ISP845X ISP815, ISP825, ISP845 HIGH DENSITY MOUNTING PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS APPROVALS l .
ISP825X The ISP815, ISP825, ISP845 series of optically ISP825 coupled isolators consist of infrared light emitting diodes and NPN silicon photodarling.

ISP825X Features

* l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Current Transfer Ratio (600%min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l All electrical parameters 100% tested l Custom electrical selections available APPLICA

ISP825X Applications

* l Computer terminals l Industrial systems controllers l Measuring instruments l Signal transmission between systems of different potentials and impedances OPTION SM SURFACE MOUNT OPTION G 1.2 10.16 9.16 4.0 3.0 0.5 3.0 3.35 0.5 1 2 3 4 5 7.0 6.0 1.2 20.32 19.32 4.0 3.0 0.5 3.0 0.5 3.35 0.26 6 7 8 7

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISP825X, ISP815. Please refer to the document for exact specifications by model.

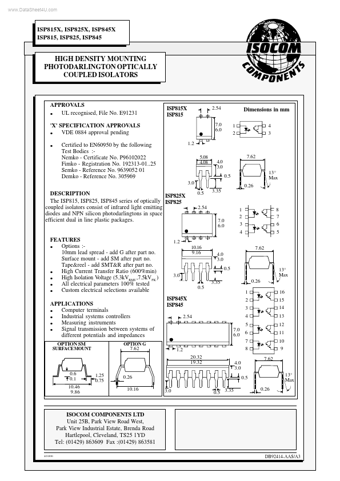

datasheet Preview Page 2 datasheet Preview Page 3
