ISQ204-1 Datasheet, Isolators, ISOCOM COMPONENTS

ISQ204-1 Features

• Isolators l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l Low input current 0.5mA IF l High Current Transfer Ratio

PDF File Details

Part number:

ISQ204-1

Manufacturer:

ISOCOM COMPONENTS

File Size:

103.70kb

Download:

📄 Datasheet

Description:

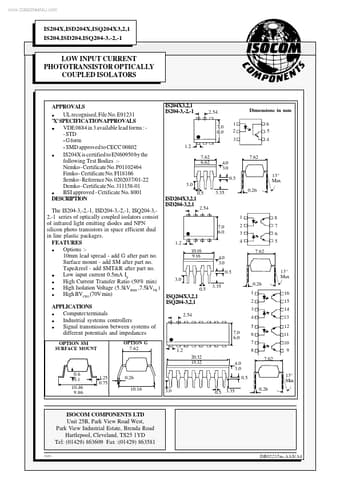

Low input current phototransistor optically coupled isolators. The IS204-3,-2,-1, ISD204-3,-2,-1, ISQ204-3,2,-1 series of optically coupled isolators consist of infrared light emitting diodes and

ISQ204-1 Application

• Applications l Computer terminals l Industrial systems controllers l Signal transmission between systems of different potentials and impedances OPTI
