H21A1 Photointerrupters

H21A1 Description

ISOCOM COMPONENTS H21Ax, H22Ax .
The H21Ax and H22Ax series of opaque photointerrupters are single channel switches consisting of a Gallium Arsenide infrared emitting diode and a NPN.

H21A1 Features

* High Gain
* 3mm Gap between LED and Detector
* Polycarbonate Case Protection against Ambient Light
* Pb Free and RoHS Compliant

H21A1 Applications

* Copiers, Printers, Facsimiles
* Record Players, Casette Decks
* Optoelectronic Switches Top

📥 Download Datasheet

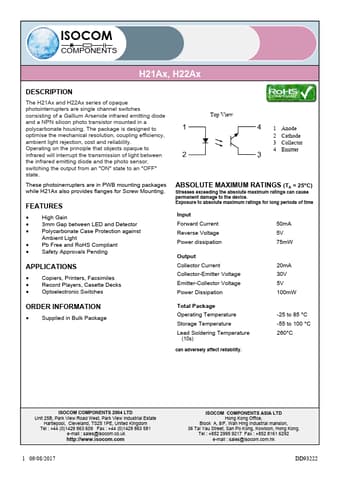

Preview of H21A1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
H21A1
Manufacturer
ISOCOM
File Size
2.59 MB
Datasheet
H21A1-ISOCOM.pdf
Description
Photointerrupters
