H22A1 Datasheet - ISOCOM

Photointerrupters

H22A1 Features

* High Gain

* 3mm Gap between LED and Detector

* Polycarbonate Case Protection against Ambient Light

* Pb Free and RoHS Compliant

* Safety Approvals Pending APPLICATIONS

* Copiers, Printers, Facsimiles

* Record Players, Casette Decks

H22A1 General Description

The H21Ax and H22Ax series of opaque photointerrupters are single channel switches consisting of a Gallium Arsenide infrared emitting diode and a NPN silicon photo transistor mounted in a polycarbonate housing. The package is designed to optimise the mechanical resolution, coupling efficiency, ambie.

H22A1 Datasheet (2.59 MB)

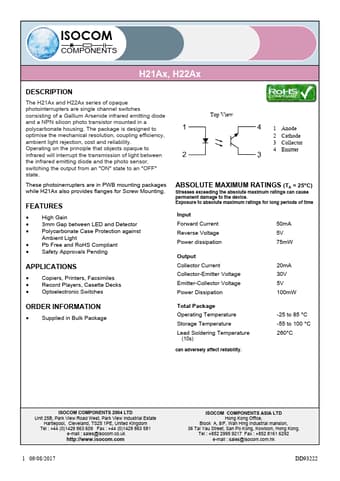

H22A1 Datasheet Preview — Preview of H22A1 PDF

Datasheet Details

Part number:

H22A1

Manufacturer:

ISOCOM

File Size:

2.59 MB

Description:

Photointerrupters.
