ICPL2601 Datasheet, optocoupler equivalent, ISOCOM

PDF File Details

Part number: ICPL2601

Manufacturer: ISOCOM

File Size: 921.43KB

Download: 📄 Datasheet

Description: Optocoupler

Datasheet Preview: ICPL2601 📥 Download PDF (921.43KB)

ICPL2601 Features and benefits


* High Speed 10Mbit/s
* Minimum Common Mode Transient Immunity 10kV/μs for ICPL2611
* High AC Isolation Voltage 5000VRMS
* Guaranteed Performance from -40.

ICPL2601 Application


* Line Receivers, Data Communication
* LSTTL to TTL, LSTTL or 5V CMOS
* Data Multiplexing
* Pulse Transf.

ICPL2601 Description

The 6N137, ICPL2601 and ICPL2611 devices each consist of an infrared emitting diode, optically coupled to a high speed integrated photo detector logic gate with a strobable output. FEATURES
* High Speed 10Mbit/s
* Minimum Common Mode Transien.

Image gallery

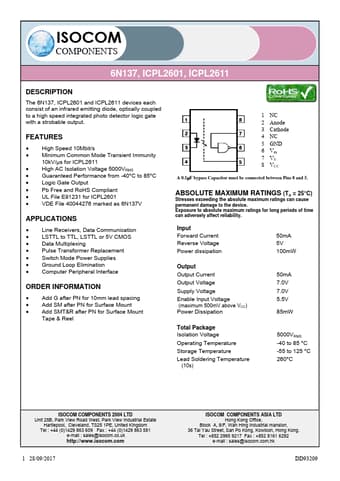

Page 2 of ICPL2601 Page 3 of ICPL2601
