IS1100 - Optocoupler

IS1100 Description

ISOCOM COMPONENTS IS1100 .
The IS1100 series optocoupler consists of an infrared emitting diode optically coupled to an NPN silicon photo transistor.

IS1100 Features

* Half Pitch 1.27mm
* High AC Isolation voltage 3750VRMS
* CTR Selections Available
* Wide Operating Temperature Range -55°C to 110°C
* Pb Free and RoHS Compliant

IS1100 Applications

* Switching Mode Power Supply
* Industrial System Controllers
* Measuring Instruments
* Signal Transmission between Systems of Different Potentials and Impedances ORDER INFORMATION
* Available in Tape and Reel with 1000pcs per reel All dimensions in mm. ABSO

📥 Download Datasheet

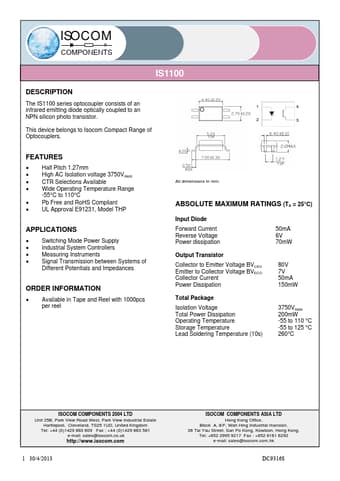

Preview of IS1100 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS1100
Manufacturer
ISOCOM
File Size
535.91 KB
Datasheet
IS1100-ISOCOM.pdf
Description
Optocoupler
