CMOS//Sine Wave; Fast Warm-up
The OCXO 143 series oscillators are only one inch square and designed for thru-hole mounting. These packages offer much tighter frequency stability than TCXOs and in some cases cost less. Frequency adjustment is by electrical means using a potentiometer or D/A converter. A Convenient voltage reference source is available for this purpose. Your choice of AT or SC c.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text
Features:
Typical 25.4 x 25.4 x 15.0 mm. SC-Cut Crystal High Stability; Low Phase Noise CMOS//Sine Wave; Fast Warm-up
The OCXO 143 series oscillators are only one inch square and designed for thru-hole mounting. These packages offer much tighter frequency stability than TCXOs and in some cases cost less. Frequency adjustment is by electrical means using a potentiometer or D/A converter. A Convenient voltage reference source is available for this purpose. Your choice of AT or SC cut resonators are available to meet your frequency stability requirements.
Ordering Information
OCXO
Package (mm)
Supply Voltage
(V)
Pulling Range (ppm)
Freq. Stability
(ppb)
Temp. Range
(ºC)
Output Logic and Symmetry
Oscillator Mode
Pin Out
Lead Free
Freq. (MHz)
143 L: 25.4 5.0
±0.

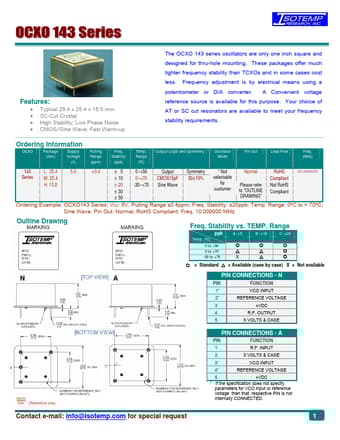

OCXO-143 Datasheet
