IS2020 - Bluetooth 4.1 Stereo Audio SOC

Product Overview

ISSC

Datasheet Details

Part number	IS2020
Manufacturer	ISSC
File Size	2.44 MB
Description	Bluetooth 4.1 Stereo Audio SOC
Datasheet	IS2020 Datasheet

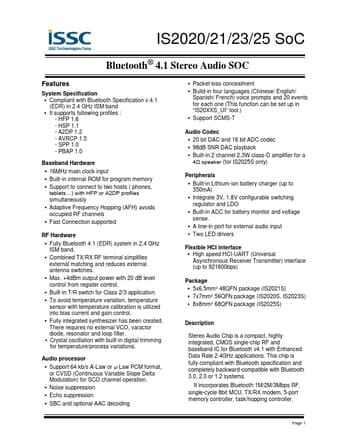

Additional preview pages of the IS2020 datasheet.

Product details

Description

Stereo Audio Chip is a compact, highly integrated, CMOS single-chip RF and baseband IC for Bluetooth v4.1 with Enhanced Data Rate 2.4GHz applications.

Features

System Specification.
Compliant with Bluetooth Specification v.4.1 (EDR) in 2.4 GHz ISM band.
It supports following profiles : - HFP 1.6 - HSP 1.1 - A2DP 1.2 - AVRCP 1.5 - SPP 1.0 - PBAP 1.0 Baseband Hardware.
16MHz main clock input.
Built-in internal ROM for program memory.
Support to connect to two hosts ( phones, tablets…) with HFP or A2DP profiles simultaneously.
Adaptive Frequency Hopping (AFH) avoids occupied RF channels.
Fast Connection supported RF Hard.
