IS22ES16G - 16GB eMMC

Download the IS22ES16G datasheet PDF. This datasheet also covers the IS21ES04G variant, as both devices belong to the same 16gb emmc family and are provided as variant models within a single manufacturer datasheet.

Description

ISSI eMMC products follow the JEDEC eMMC 5.0 standard.

It is ideal for embedded storage solutions for Industrial application and automotive application, which require high performance across a wide range of operating temperatures.

Features

  • Packaged NAND flash memory with eMMC 5.0 interface.
  • IS21/22ES04G: 4Gigabyte.
  • IS21/22ES08G: 8Gigabyte.
  • IS21/22ES16G: 16Gigabyte.
  • IS21/22ES32G: 32Gigabyte.
  • Compliant with eMMC Specification Ver.4.4, 4.41,4.5,5.0.
  • Bus mode - High-speed eMMC protocol - Clock frequency: 0-200MHz. - Ten-wire bus (clock, 1 bit command, 8 bit data bus) and a hardware reset.
  • Supports three different data bus widths : 1 bit(default), 4 bits, 8 bits.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS21ES04G-ISSI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IS220 (IS220 - IS223) OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC ETC
IS221 (IS220 - IS223) OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC ETC
IS222 (IS220 - IS223) OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC ETC
IS223 (IS220 - IS223) OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC ETC
IS2008 Bluetooth 4.1 Mono Audio SOC ISSC

Other Datasheets by ISSI (now Infineon)

Part Number Description
IS22ES04G 4GB eMMC
IS22ES08G 8GB eMMC
IS22ES32G 32GB eMMC
IS22EF08G 8GB eMMC
IS22EF16G 16GB eMMC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

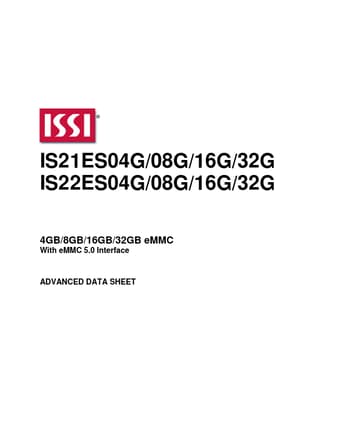

IS21ES04G/08G/16G/32G IS22ES04G/08G/16G/32G 4GB/8GB/16GB/32GB eMMC With eMMC 5.0 Interface ADVANCED DATA SHEET IS21/22ES04G/08G/16G/32G 4GB/8GB/16GB/32GB eMMC with eMMC 5.0 Interface ADVANCED INFORMATION FEATURES • Packaged NAND flash memory with eMMC 5.0 interface • IS21/22ES04G: 4Gigabyte • IS21/22ES08G: 8Gigabyte • IS21/22ES16G: 16Gigabyte • IS21/22ES32G: 32Gigabyte • Compliant with eMMC Specification Ver.4.4, 4.41,4.5,5.0 • Bus mode - High-speed eMMC protocol - Clock frequency: 0-200MHz. - Ten-wire bus (clock, 1 bit command, 8 bit data bus) and a hardware reset.
