IS23SC4442 Datasheet - ISSI

IS23SC4442 - 256 BYTE EEPROM

IS23SC4442 contains 256 x 8 bits of EEPROM main memory and a 32 x 1 bit protection PROM memory.

The main memory can be randomly accessed byte by byte.

During memory erase, all 8 bits of a byte are set to logical one.

During memory write, individual bit(s) are set to logical zeros depend on the data

IS23SC4442 Features

* Standard CMOS process

* 256 x 8 bits EEPROM organization

* Byte-wise addressing

* Irreversible byte-wise write protection of lowest 32 address (Byte 0..31)

* 3-byte Programmable Security Code (PSC) for memory write/erase protection

* 2.7-5.5V power s

IS23SC4442_ISSI.pdf

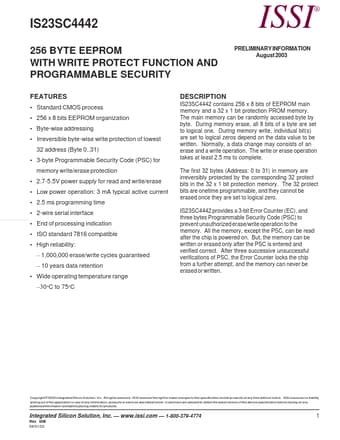

Preview of IS23SC4442 PDF
IS23SC4442 Datasheet Preview Page 2 IS23SC4442 Datasheet Preview Page 3

Datasheet Details

Part number:

IS23SC4442

Manufacturer:

ISSI

File Size:

158.38 KB

Description:

256 byte eeprom.
