IS31AP2005 Datasheet - ISSI

IS31AP2005 2.95W MONO FILTER-LESS CLASS-D AUDIO POWER AMPLIFIER

The IS31AP2005 is a high efficiency, 2.95W mono class-D audio power amplifier. A low noise, filter-less PWM architecture eliminates the output filter, reducing external component count, system cost, and simplifying design. Operating in a single 5V supply, IS31AP2005 is capable of driving 4Ω speaker .

IS31AP2005 Features

* JULY 2011

* 5V supply at THD = 10%

* -2.95W into 4Ω (Typ.)

* -1.70W into 8Ω (Typ.)

* Efficiency at 5V:

* -83% at 400mW with a 4Ω speaker

* -89% at 400mW with an 8Ω speaker

* Optimized PWM output stage eliminates LC output filter

* Fully differential design reduces RF

IS31AP2005 Datasheet (398.54 KB)

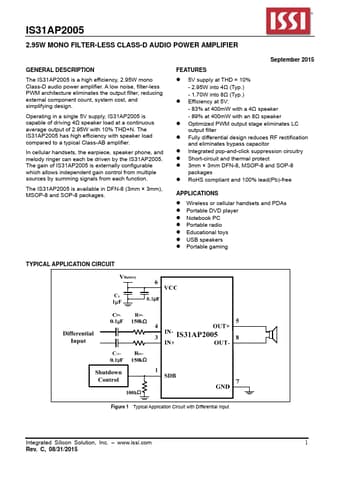

IS31AP2005 Datasheet Preview — Preview of IS31AP2005 PDF

Datasheet Details

Part number:

IS31AP2005

Manufacturer:

ISSI

File Size:

398.54 KB

Description:

2.95w mono filter-less class-d audio power amplifier.
