IS31AP4832 - DUAL 2.5W AUDIO POWER AMPLIFIER AND STEREO HEADPHONE DRIVER

Product Overview

ISSI

Datasheet Details

Part number	IS31AP4832
Manufacturer	ISSI
File Size	514.39 KB
Description	DUAL 2.5W AUDIO POWER AMPLIFIER AND STEREO HEADPHONE DRIVER
Datasheet	IS31AP4832 Datasheet

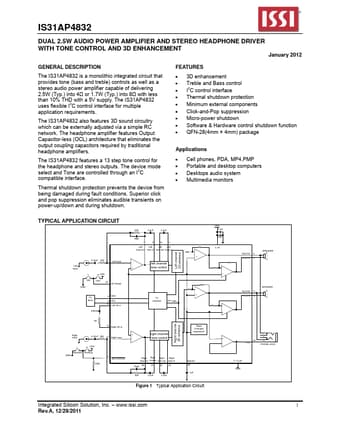

Additional preview pages of the IS31AP4832 datasheet.

Product details

Description

The IS31AP4832 is a monolithic integrated circuit that provides tone (bass and treble) controls as well as a stereo audio power amplifier capable of delivering 2.5W (Typ.) into 4Ω or 1.7W (Typ.) into 8Ω with less than 10% THD with a 5V supply.

Features

3D sound circuitry which can be externally adjusted via a simple RC network. The headphone amplifier features Output Capacitor-less (OCL) architecture that eliminates the output coupling capacitors required by traditional headphone amplifiers. The IS31AP4832 features a 13 step tone control for the headphone and stereo outputs. The device mode select and Tone are controlled through an I2C compatible interface. Thermal shutdown protection prevents the device from being damaged during fault conditi.
