IS31AP4990D Datasheet - ISSI

1.2W AUDIO POWER AMPLIFIER

IS31AP4990D Features

* Operating from VDD = 2.7V to 5.5V 1.2W output power @ VDD = 5V, THD+N= 1%, f = 1kHz, with 8Ω load Ultra-low consumption in shutdown mode (1μA) Near-zero pop & click Ultra-low distortion Unity gain stable UTQFN-9L (1.5mm × 1.5mm) package APPLICATIONS

IS31AP4990D General Description

The IS31AP4990D has been designed for demanding audio applications such as mobile phones and permits the reduction of the number of external components. It is capable of delivering 1.2W of continuous RMS output power into an 8Ω load @ 5V. An externally-controlled shutdown mode reduces the supply cur.

IS31AP4990D Datasheet (346.54 KB)

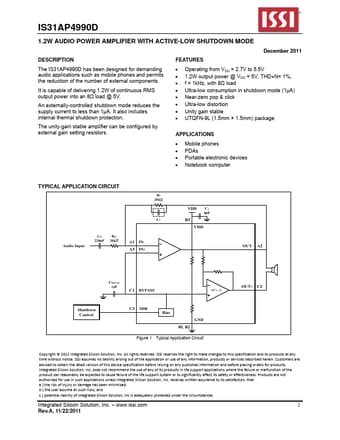

Preview of IS31AP4990D PDF

Datasheet Details

Part number:

IS31AP4990D

Manufacturer:

ISSI

File Size:

346.54 KB

Description:

1.2w audio power amplifier.
