IS31FL3731 - AUDIO MODULATED MATRIX LED DRIVER

Description

The IS31FL3731 is a compact LED driver for 144 single LEDs.

The device can be programmed via an I2C compatible interface.

The IS31FL3731 offers two blocks each driving 72 LEDs with 1/9 cycle rate.

Features

  • Supply voltage range: 2.7V to 5.5V 400kHz I2C-compatible interface 144 LEDs in dot matrix Individual blink control 8 frames memory for animations Picture mode and animation mode Auto intensity breathing during the switching of different frames LED frames displayed can be modulated with audio signal intensity LED light intensity can be modulated with audio signal intensity QFN-28 (4mm × 4mm) and SSOP-28 package.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IS31FL3731C AUDIO MODULATED MATRIX LED DRIVER Lumissil
IS31FL3730 AUDIO MODULATED MATRIX LED DRIVER Lumissil
IS31FL3732 AUDIO MODULATED MATRIX LED DRIVER Lumissil
IS31FL3732A AUDIO MODULATED MATRIX LED DRIVER Lumissil
IS31FL3733 12x16 DOTS MATRIX LED DRIVER Lumissil

Other Datasheets by ISSI (now Infineon)

Part Number Description
IS31FL3731C AUDIO MODULATED MATRIX LED DRIVER
IS31FL3730 AUDIO MODULATED MATRIX LED DRIVER
IS31FL3732 AUDIO MODULATED MATRIX LED DRIVER
IS31FL3733 12 x 16 DOTS MATRIX LED DRIVER
IS31FL3736 12 x 8 DOTS MATRIX LED DRIVER

Full PDF Text Transcription

Click to expand full text

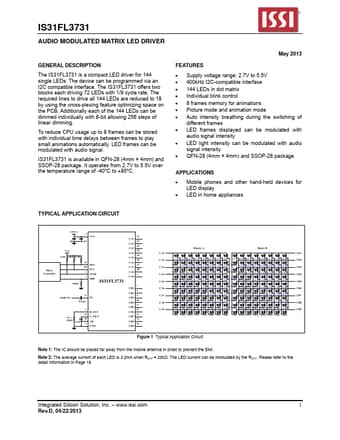

IS31FL3731 AUDIO MODULATED MATRIX LED DRIVER September 2012 GENERAL DESCRIPTION The IS31FL3731 is a compact LED driver for 144 single LEDs. The device can be programmed via an I2C compatible interface. The IS31FL3731 offers two blocks each driving 72 LEDs with 1/9 cycle rate. The required lines to drive all 144 LEDs are reduced to 18 by using the cross-plexing feature optimizing space on the PCB. Additionally each of the 144 LEDs can be dimmed individually with 8-bit allowing 256 steps of linear dimming. To reduce CPU usage up to 8 frames can be stored with individual time delays between frames to play small animations automatically. LED frames can be modulated with audio signal. IS31FL3731 is available in QFN-28 (4mm × 4mm) and SSOP-28 package. It operates from 2.7V to 5.
