IS31PW3500

1.1MHZ BOOST CONVERTER

IS31PW3500 Features

* 2.4V to 5.5V input range 26V output with over voltage protection High efficiency :85 % typical PWM dimming control Internal high power 30V MOSFET switch Fast 1.1MHz switching frequency Small, low-profile inductors and capacitors DFN-8, 2mm × 2mm

IS31PW3500 General Description

The IS31PW3500 is a constant current step-up converter. The step-up converter topology allows series connection of the white LEDs so the LED currents are identical for uniform brightness as well as constant output voltage to drive other devices. The IS31PW3500 switches at 1.1MHz, allowing the use of.

IS31PW3500 Datasheet (325.03 KB)

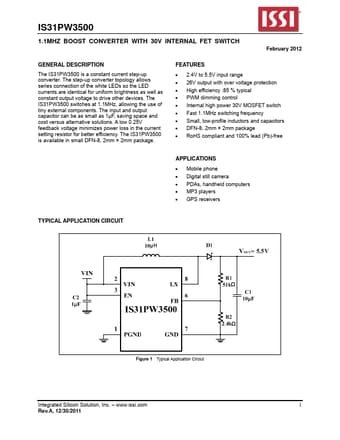

Preview of IS31PW3500 PDF

Datasheet Details

Part number:

IS31PW3500

Manufacturer:

ISSI

File Size:

325.03 KB

Description:

1.1mhz boost converter.
