IS46LQ16512A - 8Gb (x16 x 1-channel) Mobile LPDDR4/LPDDR4X

General Description

The IS43/46LQ16512A and IS43/46LQ16512AL are 8Gbit CMOS LPDDR4 SDRAM.

The device is organized as 1 channel per device, and each channel is 8-banks and 16-bits.

This product uses a doubledata-rate architecture to achieve high-speed operation.

Key Features

  • Configuration: - 512Mb x16 x 1 channel - 8 internal banks.
  • Low-voltage Core and I/O Power Supplies VDD1 = 1.70-1.95V VDD2 = 1.06-1.17V VDDQ = 1.06-1.17V (LPDDR4) VDDQ = 0.57-0.65V (LPDDR4X).
  • LVSTL(Low Voltage Swing Terminated Logic) I/O Interface.
  • Internal VREF and VREF Training.
  • Dynamic ODT : DQ ODT :VSSQ Termination CA ODT :VSS Termination.
  • Max. Clock Frequency : 1866MHz (3733Mbps).
  • 16n Pre-fetch DDR architecture.
  • Single.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IS46R16160F 256Mb DDR SDRAM Integrated Silicon Solution
IS46R16320D 16Mx32 32Mx16 64Mx8 512Mb DDR SDRAM Integrated Silicon Solution
IS46R16320E 512Mb DDR SDRAM Integrated Silicon Solution
IS46R16800E 128Mb DDR SDRAM Integrated Silicon Solution
IS46R32160D 16Mx32 32Mx16 64Mx8 512Mb DDR SDRAM Integrated Silicon Solution

Other Datasheets by ISSI (now Infineon)

Part Number Description
IS46LQ16512AL 8Gb (x16 x 1-channel) Mobile LPDDR4/LPDDR4X
IS46LQ16128A 2Gb Mobile LPDDR4/LPDDR4X
IS46LQ16128AL 2Gb Mobile LPDDR4/LPDDR4X
IS46LQ16256A 4Gb Mobile LPDDR4/LPDDR4X
IS46LQ16256AL 4Gb Mobile LPDDR4/LPDDR4X

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

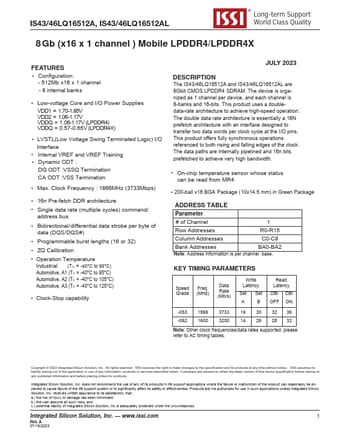

IS43/46LQ16512A, IS43/46LQ16512AL ® Long-term Support World Class Quality 8 Gb (x16 x 1 channel ) Mobile LPDDR4/LPDDR4X FEATURES • Configuration: - 512Mb x16 x 1 channel - 8 internal banks • Low-voltage Core and I/O Power Supplies VDD1 = 1.70-1.95V VDD2 = 1.06-1.17V VDDQ = 1.06-1.17V (LPDDR4) VDDQ = 0.57-0.65V (LPDDR4X) • LVSTL(Low Voltage Swing Terminated Logic) I/O Interface • Internal VREF and VREF Training • Dynamic ODT : DQ ODT :VSSQ Termination CA ODT :VSS Termination • Max.
