RTAP30112SSD25S - 1-4 Poles Coded Rotary Switches

This page provides the datasheet information for the RTAP30112SSD25S, a member of the RTA 1-4 Poles Coded Rotary Switches family.

Features

  • Benefits.
  • PCB or hand soldering versions.
  • Bushing mounting.
  • Multiple poles.
  • Decimal and hexadecimal codes.
  • Screwdriver slot or extended actuator.
  • RoHS Compliant Lead Free Electrical Data Silver Gold BBM 0.5 VA 20 mA 1A 25 V < 150 mΩ www. DataSheet4U. com Typical.

📥 Download Datasheet

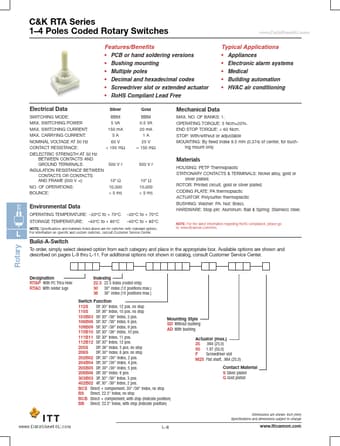

Datasheet preview – RTAP30112SSD25S

Datasheet Details

Part number RTAP30112SSD25S
Manufacturer ITT Industries
File Size 377.70 KB
Description 1-4 Poles Coded Rotary Switches
Datasheet download datasheet RTAP30112SSD25S Datasheet
Additional preview pages of the RTAP30112SSD25S datasheet.

📁 Similar Datasheet

  • RTA02-2D - THICK FILM CHIP RESISTORS ARRAY (ABCO ELECTRONICS)
  • RTA02-4C - THICK FILM CHIP RESISTORS ARRAY (ABCO ELECTRONICS)
  • RTA02-4D - THICK FILM CHIP RESISTORS ARRAY (ABCO ELECTRONICS)
  • RTA02-8D - THICK FILM CHIP RESISTORS ARRAY (ABCO ELECTRONICS)
  • RTA03-2C - THICK FILM CHIP RESISTORS ARRAY (ABCO ELECTRONICS)
  • RTA03-2D - THICK FILM CHIP RESISTORS ARRAY (ABCO ELECTRONICS)
  • RTA03-4C - THICK FILM CHIP RESISTORS ARRAY (ABCO ELECTRONICS)
  • RTA03-4D - THICK FILM CHIP RESISTORS ARRAY (ABCO ELECTRONICS)
  • RTA03-8C - THICK FILM CHIP RESISTORS ARRAY (ABCO ELECTRONICS)
  • RTAN0402 - Tantalum Nitride Thin Film Chip Resistor (Stackpole)
Other Datasheets by ITT Industries

Full PDF Text Transcription

Click to expand full text
C&K RTA Series 1–4 Poles Coded Rotary Switches Features/Benefits • PCB or hand soldering versions • Bushing mounting • Multiple poles • Decimal and hexadecimal codes • Screwdriver slot or extended actuator • RoHS Compliant Lead Free Electrical Data Silver Gold BBM 0.5 VA 20 mA 1A 25 V < 150 mΩ www.DataSheet4U.com Typical Applications • Appliances • Electronic alarm systems • Medical • Building automation • HVAC air conditioning Mechanical Data MAX. NO. OF BANKS: 1. OPERATING TORQUE: 5 Ncm±20%. END STOP TORQUE: < 60 Ncm. STOP: With/without or adjustable MOUNTING: By fixed index 9.5 mm (0.374) of center, for bushing mount only SWITCHING MODE: BBM MAX. SWITCHING POWER 5 VA MAX. SWITCHING CURRENT: 150 mA MAX.
