M133NWN1-R3 - TFT LCD
4 2.0 Absolute Maximum Ratings 6 3.0 Pixel Format Image8 4.0 Optical Characteristics9 5.0 Backlight Characteristics 13 6.0 Electrical Characteristics14 7.0 Interface Timings18 8.0 Power Consumption 19 9.0 Power ON/OFF Sequence21 10.0 Mechanical Characteristics 22 11.0 Package Specification 25 12.0
InfoVision Optoelectronics (Kunshan)Co., Ltd.

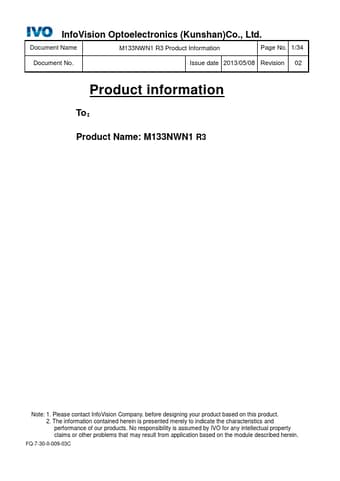

Document Name M133NWN1 R3 Product Information Page No.
1/34 Document No.
Issue date 2013/05/08 Revision 02 Product information To: Product Name: M133NWN1 R3 Note: 1.
Please contact InfoVision Company.
before designing your product based on this product.
2.
The information contained herein is presented merely to indicate the characteristics and performance of our products.
No responsibility is assumed by IVO for any intellectual property claim
M133NWN1-R3 Features
* 13.3” TFT-LCD Panel
* Supported HD 1,366x768 pixels resolution
* Compatible with RoHS standard
* Supported eDP1.2 Electrical Interface 1.3 Product Summary Items Specifications Unit Screen Diagonal 13.3” Inch Active Area 293.4168 (H) x 164.9664 (V) mm Pixels (H x V) 1,36
