IXPD610

Bus Compatible Digital PWM Controller

IXPD610 Features

* G G Microcomputer bus compatible Two complementary outputs for direct control of a switching power bridge Dynamically programmable pulse width ranges from 0 to 100 % Two modes of operation: 7-bit or 8bit resolution Switching frequency range up to 390 kHz Programmable Dead-time Counter prevents swit

IXPD610 General Description

The IXDP610 Digital Pulse Width Modulator (DPWM) is a programmable CMOS LSI device which accepts digital pulse width data from a microprocessor and generates two complementary, non-overlapping, pulse width modulated signals for direct digital control of switching power bridge. The DPWM is designed t.

IXPD610 Datasheet (181.71 KB)

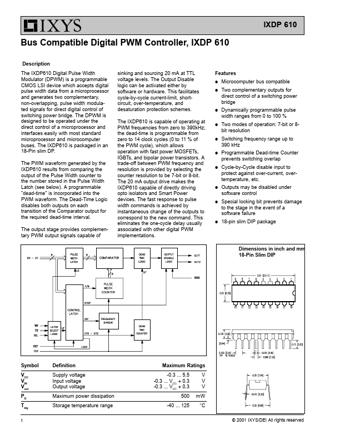

Preview of IXPD610 PDF

Datasheet Details

Part number:

IXPD610

Manufacturer:

IXYS Corp

File Size:

181.71 KB

Description:

Bus compatible digital pwm controller.
