CS142 Phase Control Thyristor

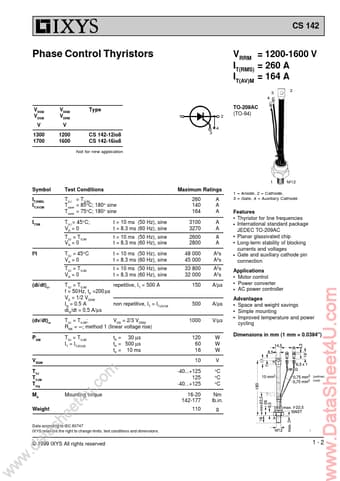

CS 142 Phase Control Thyristors VRRM = 1200-1600 V IT(RMS) = 260 A IT(AV)M = 164 A 3 4 2 VRSM VDSM V 1300 1700 VRRM VDRM V 1200 1600 Type 1 4 2 TO-209AC (TO-94) CS 142-12io8 CS 142-16io8 Not for new application 3 1 M12 Symbol IT(RMS) IT(AV)M ITSM Test Conditions TVJ = TVJM Tcase = 85°C; 180° sine Tcase = 75°C; 180° sine TVJ = 45°C; VR = 0 TVJ = TVJM VR = 0 t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz), sine t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz), sine t = 10 ms (50 Hz), sine t = 8.3.

CS142 Features

* Thyristor for line frequencies International standard package JEDEC TO-209AC Planar glassivated chip Long-term stability of blocking currents and voltages Gate and auxiliary cathode pin connection q q q q q q 500 1000 120 60 16 10 q q q (dv/dt)cr PGM TVJ = TVJM; VDR = 2/3 VDRM RGK = ∞; method 1

CS142 Datasheet (85.75 KB)

CS142 Datasheet Preview — Preview of CS142 PDF

Datasheet Details

Part number:

CS142

Manufacturer:

IXYS Corporation

File Size:

85.75 KB

Description:

Phase control thyristor.
