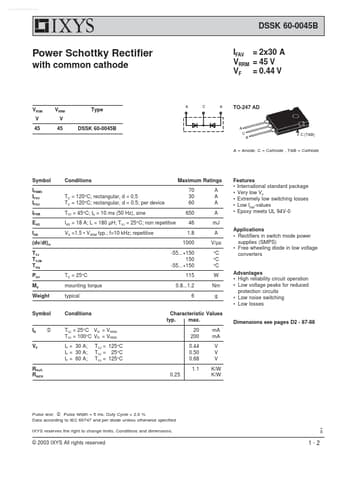

DSSK 60-0045B
Power Schottky Rectifier
with common cathode
IFAV = 2x30 A VRRM = 45 V VF = 0.44 V
VRSM V 45
VRRM V 45
Type
A
C
A
TO-247 AD
DSSK 60-0045B
A C A
C (TAB)
A = Anode, C = Cathode , TAB = Cathode
Symbol IFRMS IFAV IFAV IFSM EAS IAR (dv/dt)cr TVJ TVJM Tstg Ptot Md Weight
Conditions TC = 120°C; rectangular, d = 0.5 TC = 120°C; rectangular, d = 0.5; per device TVJ = 45°C; tp = 10 ms (50 Hz), sine IAS = 18 A; L = 180 µH; TVJ = 25°C; non repetitive VA =1.5 • VRRM typ.; f=10 kHz; repetitive
Maximum Ratings 70 30 60 650 46 1.8 1000 -55...+150 150 -55...
