IXCY10M90S Switchable Current Regulators

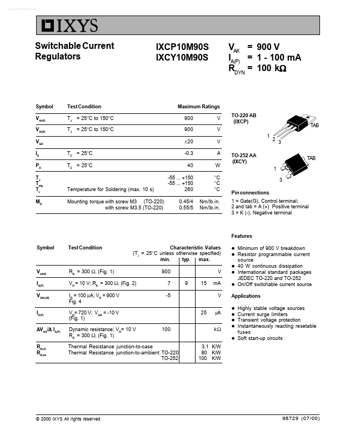

www.DataSheet4U.com Switchable Current Regulators IXCP10M90S IXCY10M90S VAK = 900 V IA(P) = 1 - 100 mA RDYN = 100 kΩ Symbol VAKR VAGR VGK ID PD TJ Tstg TL MD Test Condition TJ = 25°C to 150°C TJ = 25°C to 150°C Maximum Ratings 900 900 ± 20 V V V A W °C °C °C Nm/lb.in. Nm/lb.in. TO-252 AA (IXCY) 1 3 Pin connections 1 = Gate(G), Control terminal; 2 and tab = A (+) Positive terminal 3 = K (-), Negative terminal 1 2 3 TAB TO-220 AB (IXCP) TAB TC = 25°C TC = 25°C -0.3 40 -55 +150 -55 +150 .

IXCY10M90S Features

* Symbol Test Condition Characteristic Values (TJ = 25°C unless otherwise specified) min. typ. max. 900 7 -5 25 100 9 15 V mA V µA kΩ 3.1 K/W 80 K/W 100 K/W Minimum of 900 V breakdown Resistor programmable current source 40 W continuous dissipation International standard packages JEDEC TO-220 and TO-2

IXCP10M90S_IXYSCorporation.pdf

IXCY10M90S Datasheet Preview — This datasheet PDF includes multiple part numbers: IXCY10M90S, IXCP10M90S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXCY10M90S, IXCP10M90S

Manufacturer:

IXYS Corporation

File Size:

372.74 KB

Description:

Switchable current regulators.

Note:

This datasheet PDF includes multiple part numbers: IXCY10M90S, IXCP10M90S.
Please refer to the document for exact specifications by model.
