IXMS150PSI

High Performance Dual PWM Microstepping Controller

IXMS150PSI Features

* l l The IXMS150 is a high performance monolithic 2-channel PWM controller. Implemented in CMOS, the low power IXMS150 precisely controls the current in each of two separate power H-bridge drivers using unique sampling and signal processing techniques. Each www.DataSheet4U.com channel contains an er

IXMS150PSI General Description

IXMS 150 Nomenclature of Dual PWM Microstepping Controller www.DataSheet4U.com Sym. Pin Description IXMS 150 PS I VBB 11 Negative Bias Generator Output: For internal use by the IXMS 150. 12 Digital Ground (Example) IXYS Dual PWM Controller Package Type Plastic Skinny DIP AGND 1 Analog Ground CO.

IXMS150PSI Datasheet (571.91 KB)

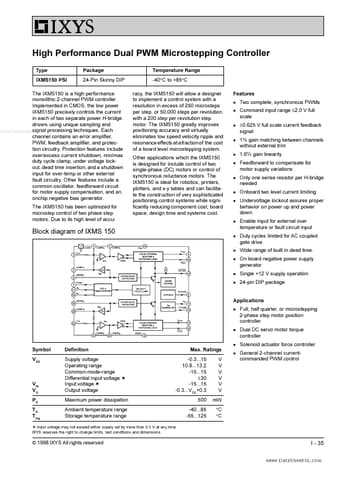

Preview of IXMS150PSI PDF

Datasheet Details

Part number:

IXMS150PSI

Manufacturer:

IXYS Corporation

File Size:

571.91 KB

Description:

High performance dual pwm microstepping controller.
High Performance Dual PWM Microstepping Controller Type IXMS150 PSI Package 24-Pin Skinny DIP Temperature Range -40°C to +85°C racy, the IXMS150 will .
