MEE95-06DA - Fast Recovery Epitaxial Diode

MEE95-06DA Description

FRED Module Fast Recovery Epitaxial Diode Part number MEA 95-06DA MEK 95-06DA MEE 95-06DA MEA/MEK/MEE 95-06DA VRRM = 600 V IFAV = 95 A trr = 110 ns .

MEE95-06DA Features

* / Advantages:
* Planar passivated chips
* Low switching losses
* Soft recovery behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits
* Low noise switching

MEE95-06DA Applications

* Antiparallel diode for high frequency switching devices
* Free wheeling diode in converters and motor control circuits
* Inductive heating and melting
* Uninterruptible power supplies (UPS)
* Ultrasonic cleaners and welders Package: TO-240AA
* Isolation voltage: 4800 V~

📥 Download Datasheet

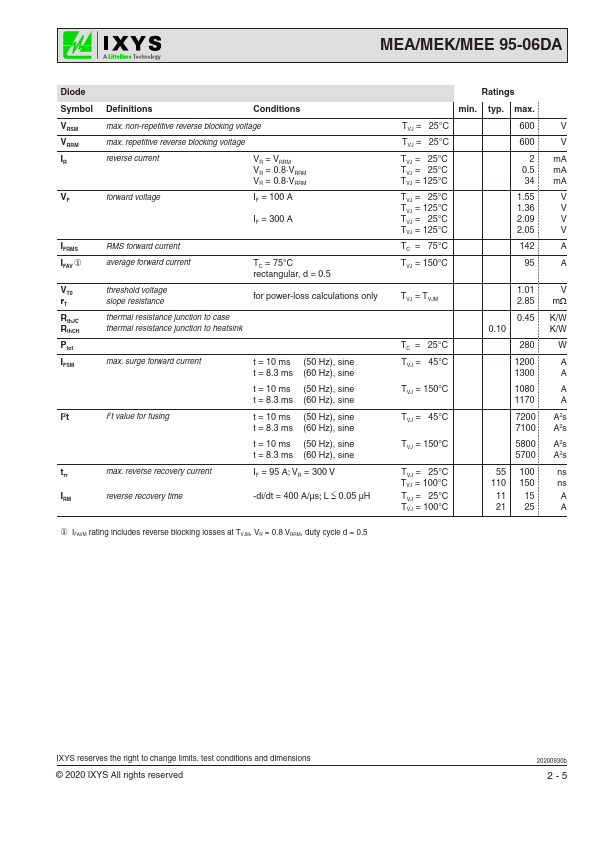

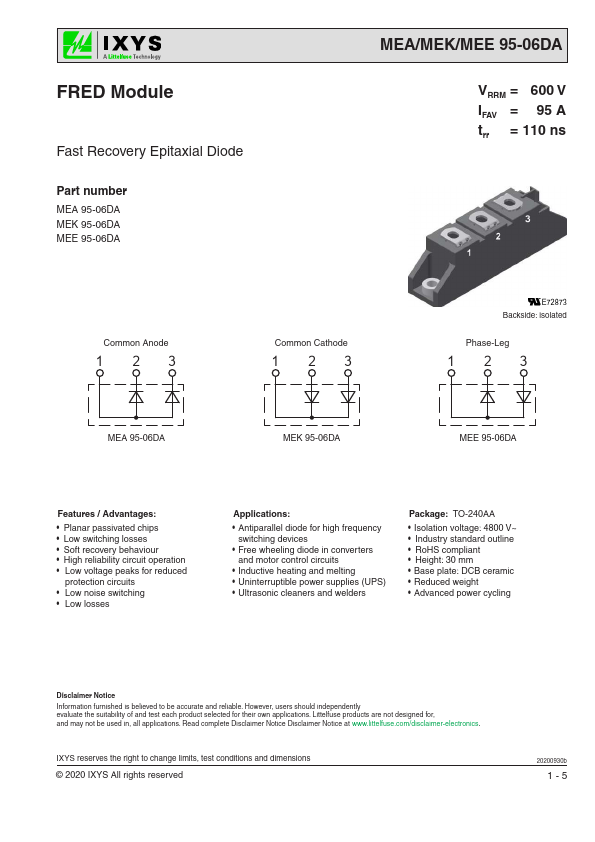

Preview of MEE95-06DA PDF

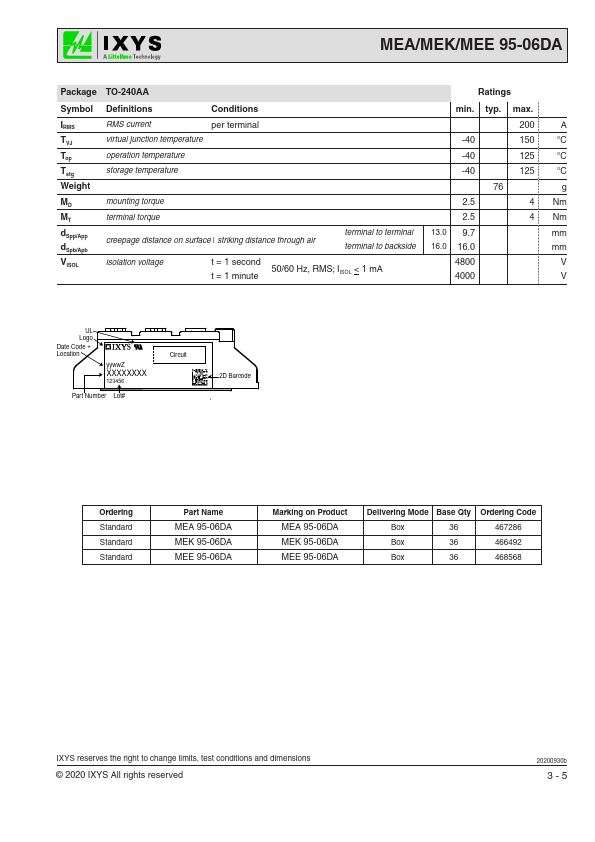

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MEE95-06DA
Manufacturer
IXYS Corporation
File Size
314.29 KB
Datasheet
MEE95-06DA_IXYSCorporation.pdf
Description
Fast Recovery Epitaxial Diode
