MEK95-06DA Fast Recovery Epitaxial Diode

IXYS Corporation

Description

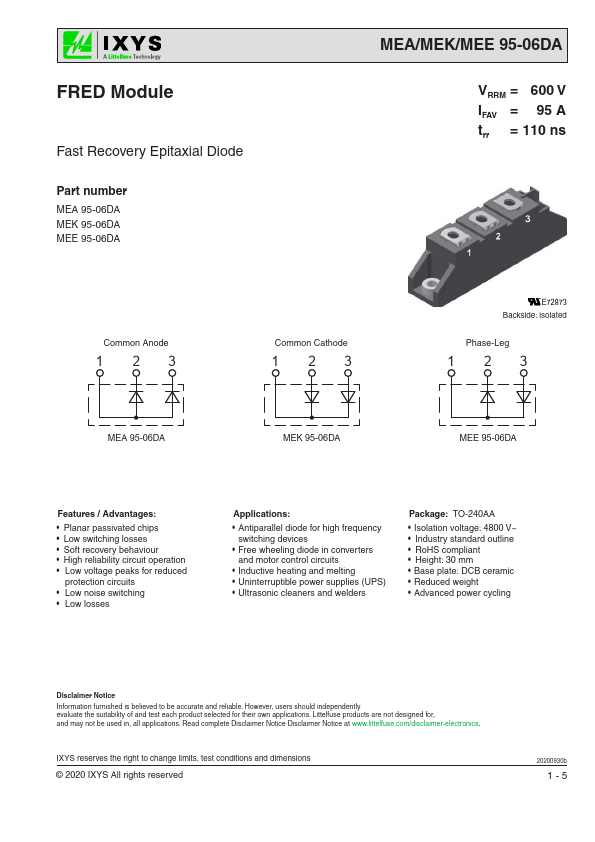

FRED Module Fast Recovery Epitaxial Diode Part number MEA 95-06DA MEK 95-06DA MEE 95-06DA MEA/MEK/MEE 95-06DA VRRM = 600 V IFAV = 95 A trr = 110 ns .

📥 Download Datasheet

MEK95-06DA Datasheet Preview — Preview of MEK95-06DA PDF

Datasheet Specifications

Part number: MEK95-06DA
Manufacturer: IXYS Corporation
File Size: 314.29 KB
Datasheet: MEK95-06DA_IXYSCorporation.pdf
Description: Fast Recovery Epitaxial Diode

Features

* / Advantages:
* Planar passivated chips
* Low switching losses
* Soft recovery behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits
* Low noise switching

Applications

* Antiparallel diode for high frequency switching devices
* Free wheeling diode in converters and motor control circuits
* Inductive heating and melting
* Uninterruptible power supplies (UPS)
* Ultrasonic cleaners and welders Package: TO-240AA
* Isolation voltage: 4800 V~
