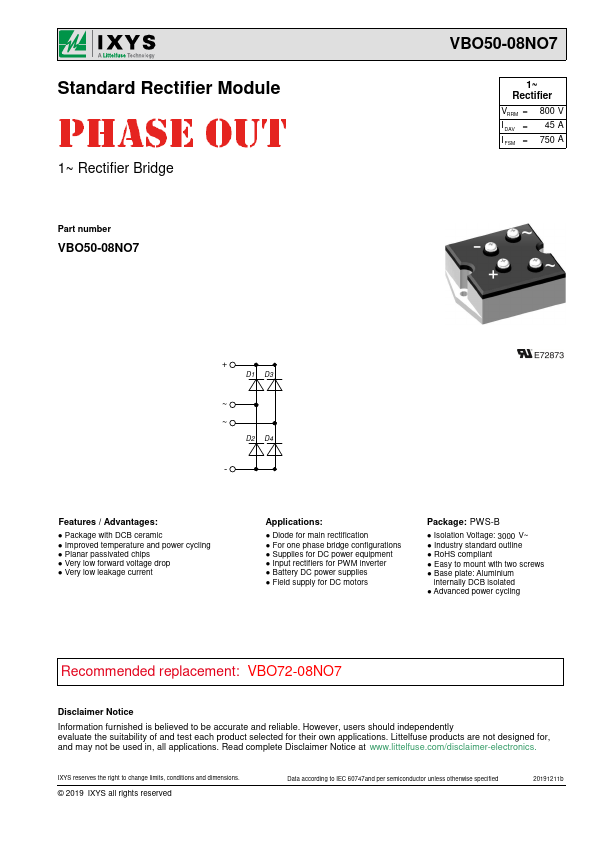

VBO50-08NO7 Standard Rectifier Module

IXYS Corporation

VBO50-08NO7 Description

Standard Rectifier Module 1~ Rectifier Bridge Part number VBO50-08NO7 VBO50-08NO7 13~ Rectifier VRRM = I DAV = I FSM = 800 V 45 A 750 A + D1 D3 ~.

VBO50-08NO7 Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

VBO50-08NO7 Applications

* Diode for main rectification
* For one phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: PWS-B
* Isolation Voltage: 3000 V~
* Industry standard outlin

📥 Download Datasheet

VBO50-08NO7 Datasheet Preview — Preview of VBO50-08NO7 PDF

Datasheet Details

Part number: VBO50-08NO7
Manufacturer: IXYS Corporation
File Size: 209.31 KB
Datasheet: VBO50-08NO7_IXYSCorporation.pdf
Description: Standard Rectifier Module
