VHFD37 Datasheet, Diodes, IXYS Corporation

VHFD37 Features

  • Diodes Package with DCB ceramic base plate Isolation voltage 3600 V~ Planar passivated chips Blocking voltage up to 1600 V Low forward voltage drop Leads suitable for PC board soldering UL reg

PDF File Details

Part number:

VHFD37

Manufacturer:

IXYS Corporation

File Size:

118.85kb

Download:

📄 Datasheet

Description:

Half controlled single phase rectifier bridge including freewheeling diode and field diodes.

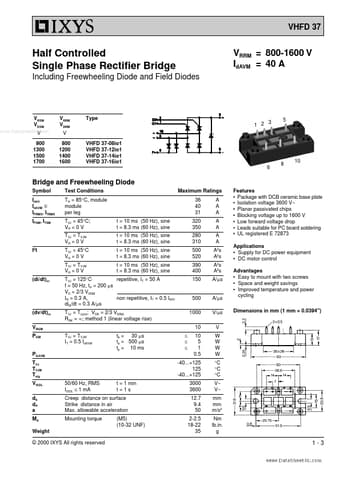

Datasheet Preview: VHFD37 📥 Download PDF (118.85kb)
Page 2 of VHFD37 Page 3 of VHFD37

VHFD37 Application

  • Applications Supply for DC power equipment DC motor control q q TVJ = 125°C repetitive, IT = 50 A f = 50 Hz, tP = 200 ms VD = 2/3 VDRM IG = 0.3 A,
