VUB120-12NO1 (VUB120 / VUB160) Three Phase Rectifier Bridge

www.DataSheet4U.com VUB 120 / 160 Three Phase Rectifier Bridge with IGBT and Fast Recovery Diode for Braking System VRRM = 1200/1600 V IdAVM = 121/157 A Preliminary Data VRRM V Type VRRM V Type 1200 VUB 120-12 NO1 1600 VUB 120-16 NO1 1200 VUB 160-12 NO1 1600 VUB 160-16 NO1 Symbol VRRM IdAVM IFSM I2t Ptot VCES VGE IGBT Test Conditions TC = 75°C, sinusoidal 120° TVJ = 45°C, TVJ = 150°C, TVJ = 45°C, TVJ = 150°C, TC = 25°C per diode TVJ = 25°C to 150°C Continuous TC = 25°C, DC TC = 75°C, DC T.

VUB120-12NO1 Features

* Soldering connections for PCB mounting Isolation voltage 3600 V~ Ultrafast diode Convenient package outline UL registered E 72873 Case and potting UL94 V-0 Thermistor q q q q q q q Applications q Drive Inverters with brake system IC25 IC75 ICM Ptot VRRM IFAV IFRMS IFRM IFSM Ptot TVJ TVJM Tstg VIS

VUB120-12NO1 Datasheet (137.97 KB)

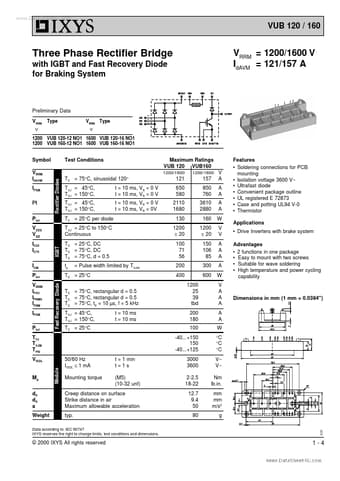

Preview of VUB120-12NO1 PDF
