VUB72 Three Phase Rectifier Bridge

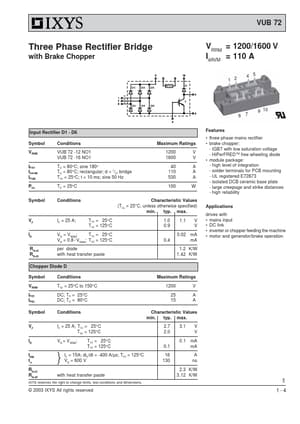

VUB 72 Three Phase Rectifier Bridge with Brake Chopper VRRM = 1200/1600 V IdAVM = 110 A 1 2 4 5 D1 D3 D5 NTC D T D2 D4 D6 6 7 .

VUB72_IXYSCorporation.pdf

VUB72 Datasheet Preview — Preview of VUB72 PDF

Datasheet Details

Part number:

VUB72

Manufacturer:

IXYS Corporation

File Size:

89.67 KB

Description:

Three Phase Rectifier Bridge

Features

* Maximum Ratings 1200 1600 40 110 530 100 V V A A A W 9 10 Input Rectifier D1 - D6 Symbol VRRM IFAV IDAVM IFSM Ptot Symbol Conditions VUB 72 -12 NO1 VUB 72 -16 NO1 TC = 80°C; sine 180° TC = 80°C; rectangular; d = 1/3; bridge TVJ = 25°C; t = 10 ms; sine 50 Hz TC = 25°C Conditions
* three ph

Applications

* drives with
* mains input
* DC link
* inverter or chopper feeding the machine
* motor and generator/brake operation Characteristic Values (TVJ = 25°C, unless otherwise specified) min. typ. max. TVJ = 25°C TVJ = 125°C 1.0 0.9 0.4 1.1 0.02 V V mA mA VF IR RthJC RthJH
