VUO34-16NO1 Datasheet - IXYS Corporation

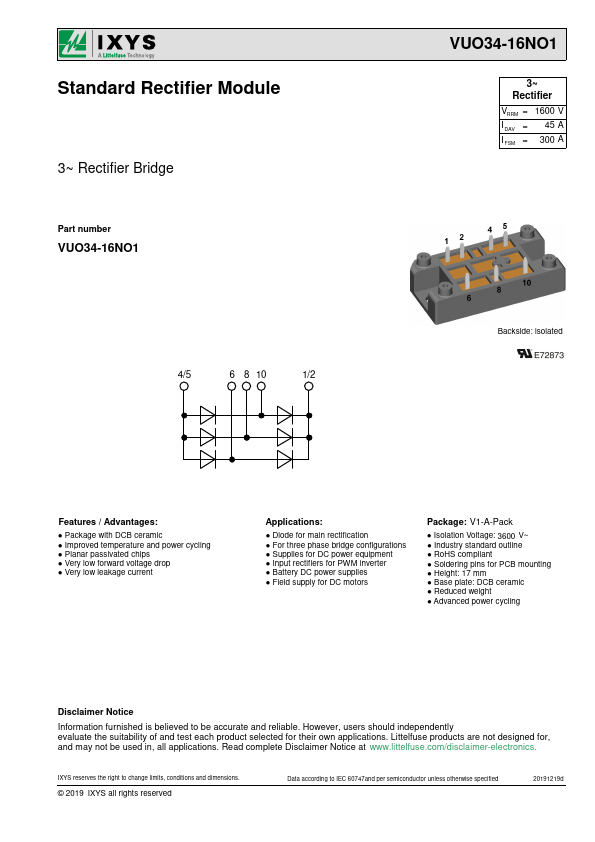

VUO34-16NO1, Standard Rectifier Module

Standard Rectifier Module 3~ Rectifier Bridge Part number VUO34-16NO1 4/5 6 8 10 1/2 VUO34-16NO1 3~ Rectifier VRRM = I DAV = I FSM = 1600 V 45

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies

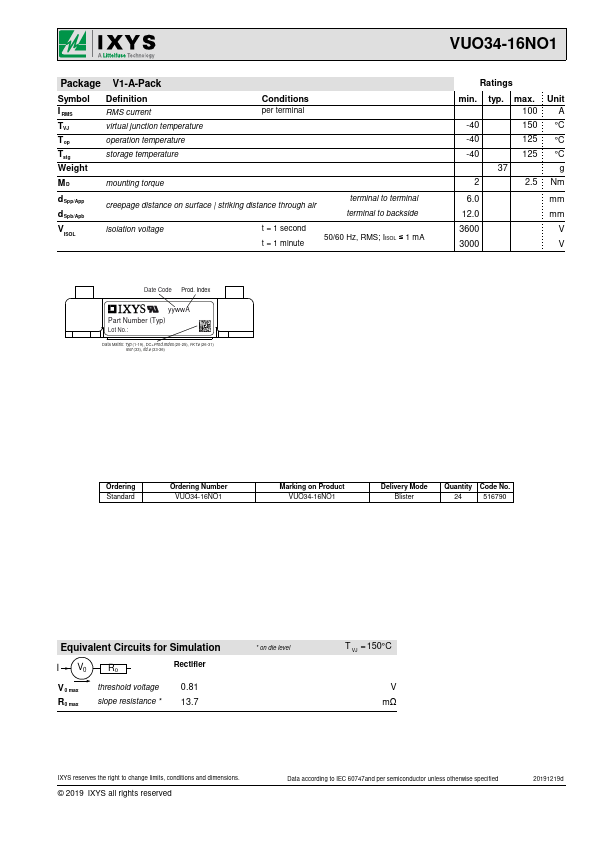

* Field supply for DC motors Package: V1-A-Pack
* Isolation Voltage: 3600 V~
* Industry standard

VUO34-16NO1-IXYSCorporation.pdf
