VUO35-16NO7 Standard Rectifier Module

IXYS Corporation

VUO35-16NO7 Description

Standard Rectifier Module 3~ Rectifier Bridge Part number VUO35-16NO7 VUO35-16NO7 Phase out 3~ Rectifier VRRM = I DAV = I FSM = 1600 V 35 A 400 A.

VUO35-16NO7 Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

VUO35-16NO7 Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: PWS-A
* Isolation Voltage: 3000 V~
* Industry standard outl

📥 Download Datasheet

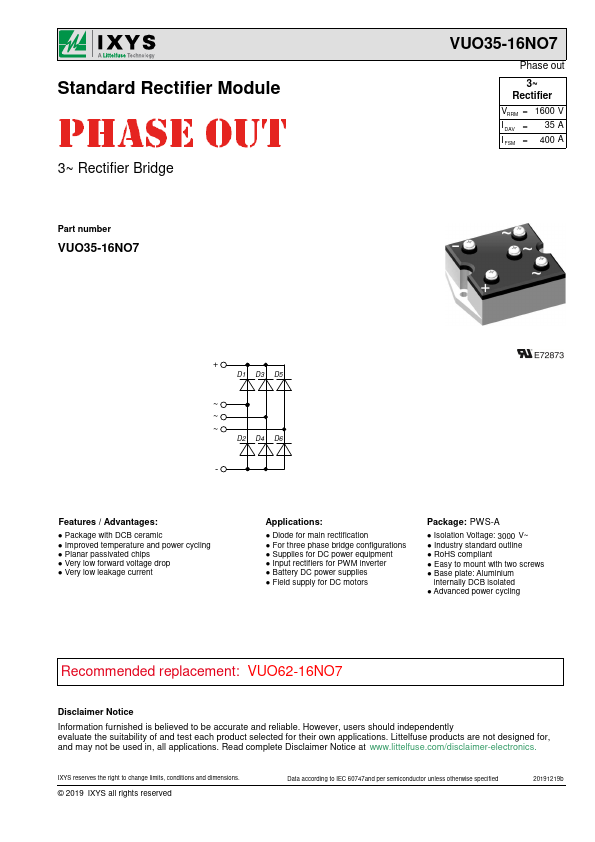

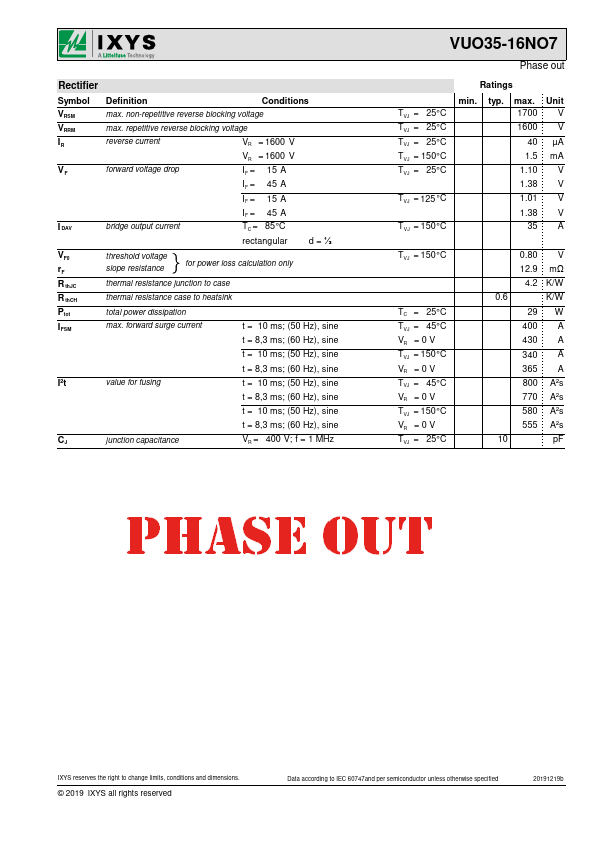

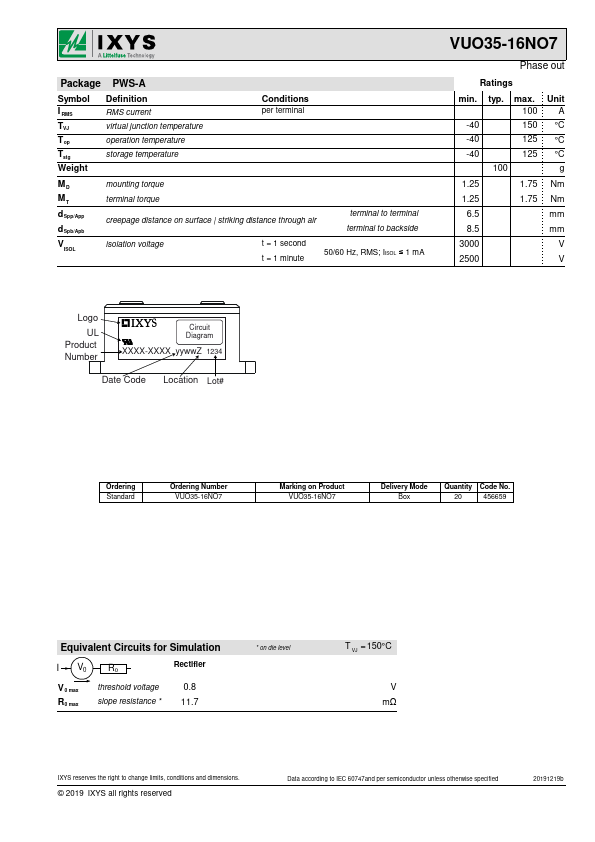

VUO35-16NO7 Datasheet Preview — Preview of VUO35-16NO7 PDF

Datasheet Details

Part number: VUO35-16NO7
Manufacturer: IXYS Corporation
File Size: 210.06 KB
Datasheet: VUO35-16NO7-IXYSCorporation.pdf
Description: Standard Rectifier Module
