CMA50E1600TZ Single Thyristor

IXYS

Description

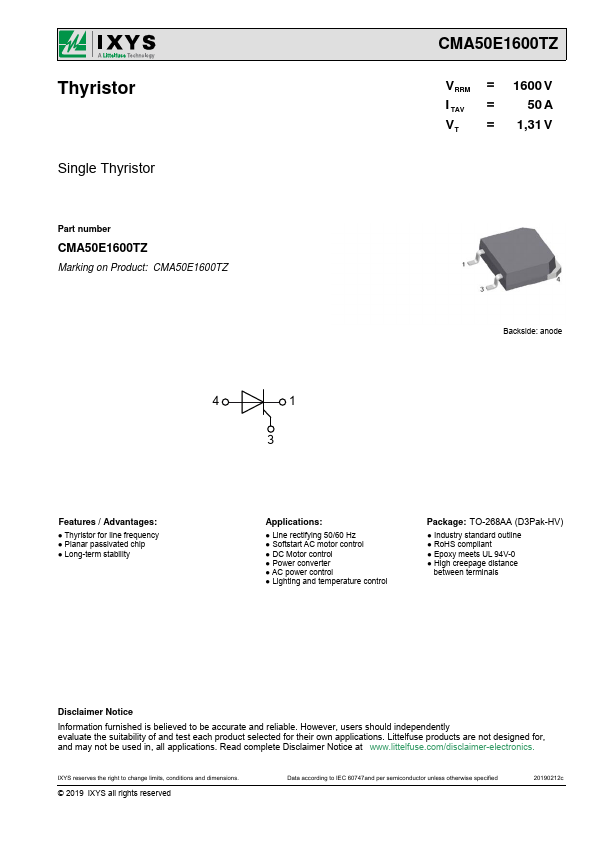

Thyristor Single Thyristor Part number CMA50E1600TZ Marking on Product: CMA50E1600TZ 4 1 3 CMA50E1600TZ VRRM = I TAV = VT = 1600 V 50 A 1,31.

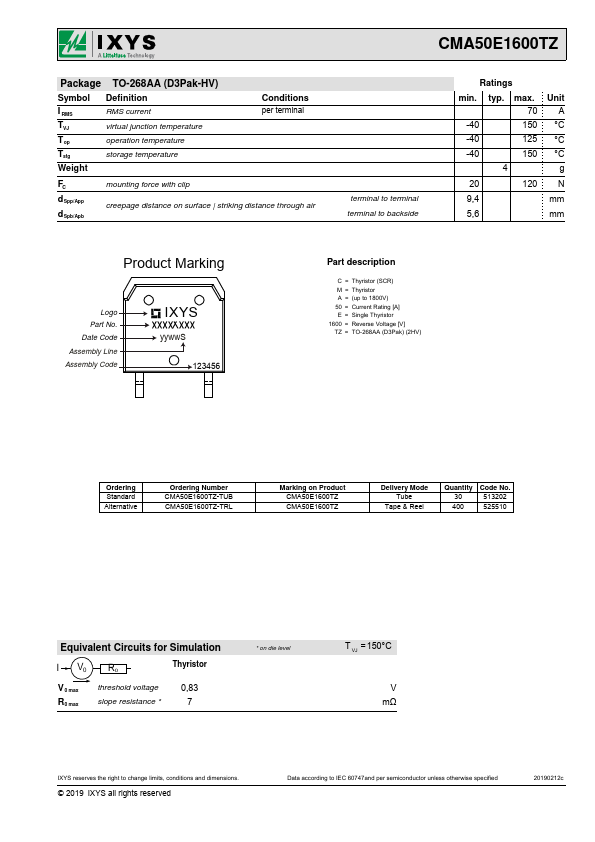

C = Thyristor (SCR) M = Thyristor A = (up to 1800V) 50 = Current Rating [A] E = Single Thyristor 1600 = Reverse Voltage [V] TZ = TO-268AA (D3Pak) (2HV.

📥 Download Datasheet

CMA50E1600TZ Datasheet Preview — Preview of CMA50E1600TZ PDF

Datasheet Specifications

Part number: CMA50E1600TZ
Manufacturer: IXYS
File Size: 138.33 KB
Datasheet: CMA50E1600TZ-IXYS.pdf
Description: Single Thyristor

Features

* / Advantages:
* Thyristor for line frequency
* Planar passivated chip

Applications

* Line rectifying 50/60 Hz
* Softstart AC motor control
* DC Motor control
* Power converter
* AC power control
* Lighting and temperature control Package: TO-268AA (D3Pak-HV)
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0
* High creepag
