DCG45X1200NA - SiC Schottky Diode

IXYS

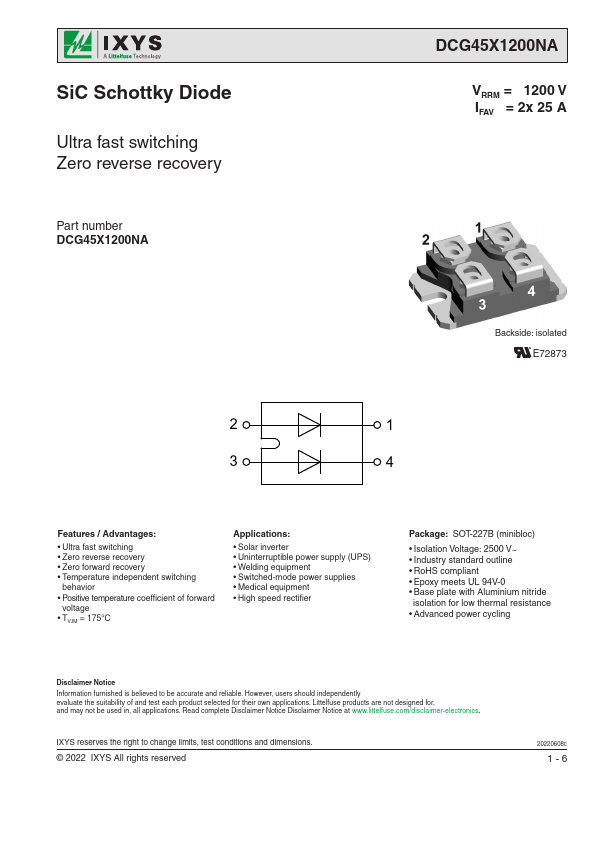

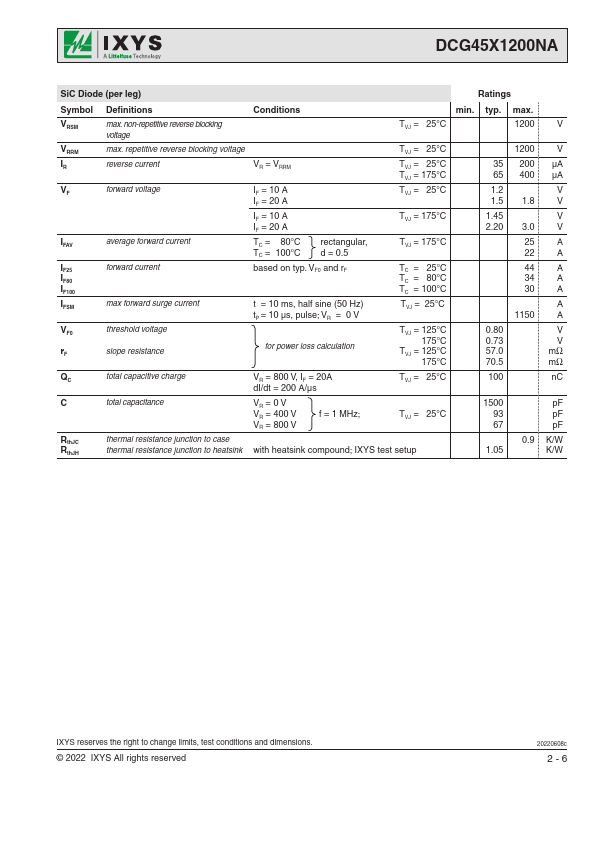

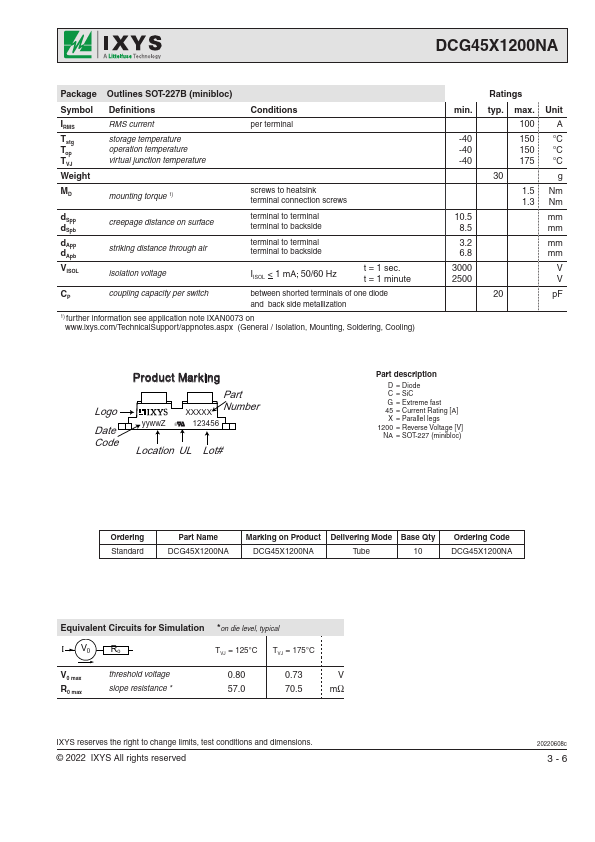

The DCG45X1200NA by IXYS is a SiC Schottky Diode. Below is the official datasheet preview.

📥 Download Datasheet

DCG45X1200NA SiC Schottky Diode by IXYS - Datasheet Preview — Official preview page of the **DCG45X1200NA** SiC Schottky Diode datasheet (IXYS).

Datasheet Details

Part number	DCG45X1200NA
Manufacturer	IXYS
File Size	403.69 KB
Description	SiC Schottky Diode
Datasheet	DCG45X1200NA-IXYS.pdf
Additional preview pages of the DCG45X1200NA datasheet.

DCG45X1200NA Product details

Description

D = Diode C = SiC G = Extreme fast 45 = Current Rating [A] X = Parallel legs 1200 = Reverse Voltage [V] NA = SOT-227 (minibloc) Ordering Standard Part Name DCG45X1200NA Marking on Product Delivering Mode Base Qty DCG45X1200NA Tube 10 Ordering Code DCG45X1200NA Equivalent Circuits for Simulation on die level, typical I V0 R0 TVJ = 125°C TVJ = 175°C V0 max R0 max threshold voltage slope resistance 0.80 0.73 V 57.0 70.5 mW IXYS reserves the right to change limits, tes

Features

/ Advantages:.
Ultra fast switching.
Zero reverse recovery.
Zero forward recovery.
Temperature independent switching behavior.
Positive temperature coefficient of forward voltage.
TVJM = 175°C.
