DHG20I1200PA - High Performance Fast Recovery Diode

Product Overview

IXYS

Datasheet Details

Part number	DHG20I1200PA
Manufacturer	IXYS
File Size	129.28 KB
Description	High Performance Fast Recovery Diode
Datasheet	DHG20I1200PA Datasheet

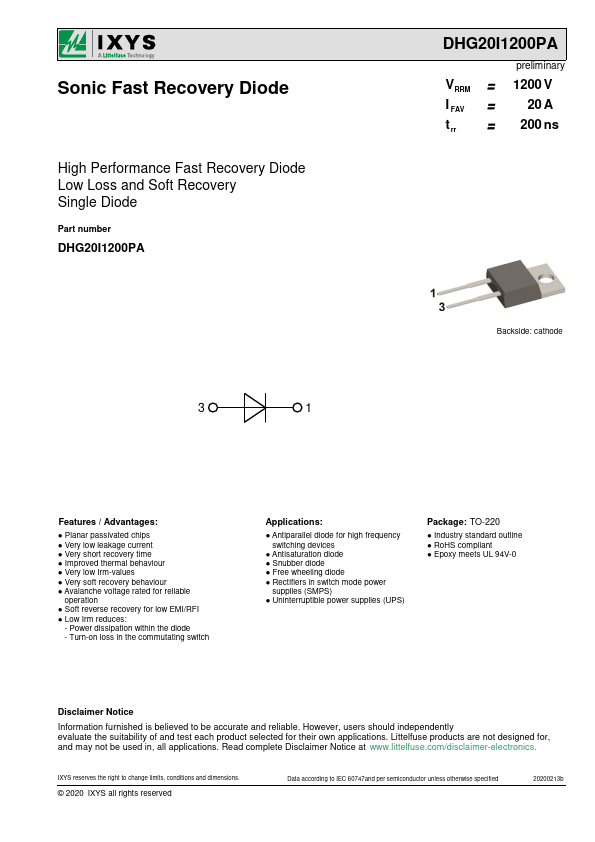

Additional preview pages of the DHG20I1200PA datasheet.

Product details

Description

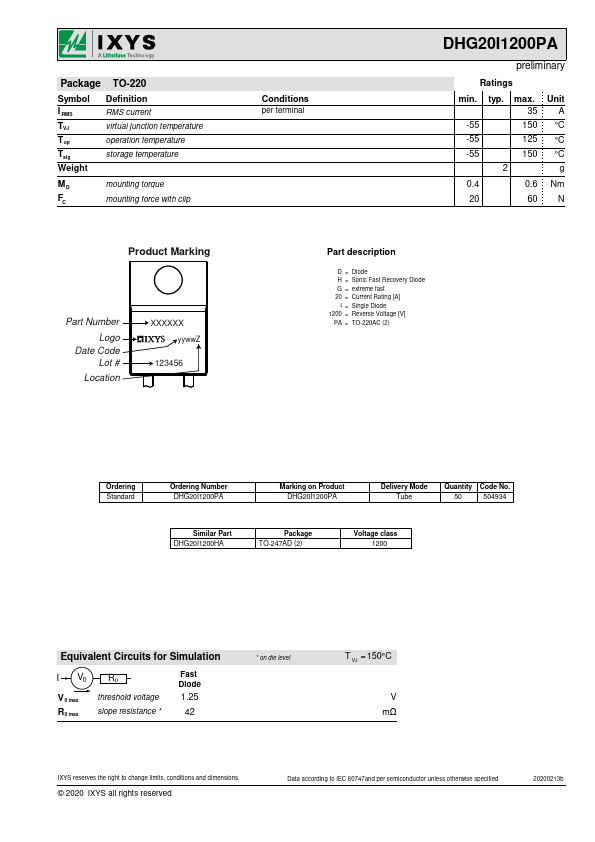

D = Diode H = Sonic Fast Recovery Diode G = extreme fast 20 = Current Rating [A] I = Single Diode 1200 = Reverse Voltage [V] PA = TO-220AC (2) Ordering Standard Ordering Number DHG20I1200PA Marking on Product DHG20I1200PA Delivery Mode Tube Quantity Code No.50 504934 Similar Part DHG20I1200HA Package TO-247AD (2) Voltage class 1200 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 1.25 42 on die level T VJ = 150

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
