DMA10P1200UZ Standard Rectifier

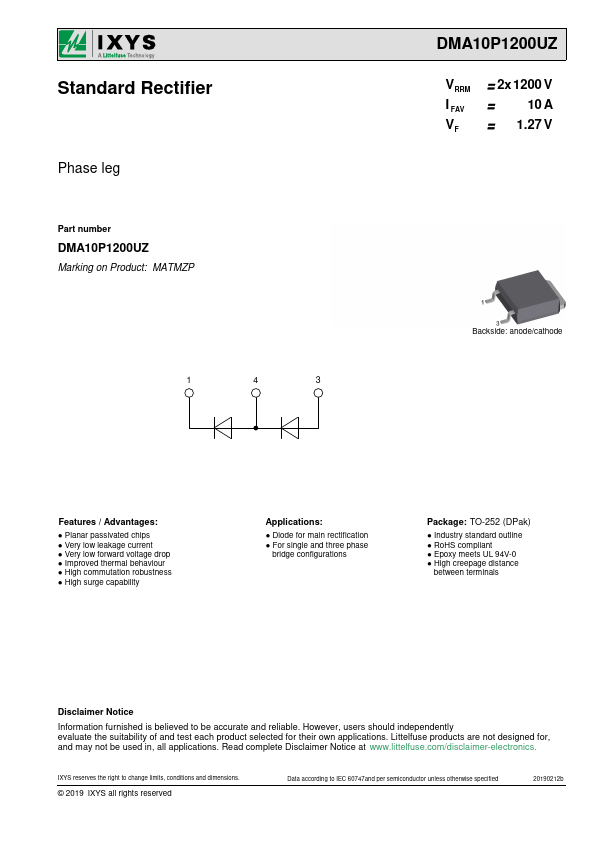

📥 Download Datasheet Datasheet Preview Page 1

Description

Standard Rectifier Phase leg Part number DMA10P1200UZ Marking on Product: MATMZP 1 4 3 DMA10P1200UZ VRRM I FAV VF = 2x 1200 V = 10 A = 1.27 V B.
D = Diode M = Standard Rectifier A = (up to 1800V) 10 = Current Rating [A] P = Phase leg 1200 = Reverse Voltage [V] UZ = TO-252AA (DPak) (2HV) Orderi.

📥 Download Datasheet

Preview of DMA10P1200UZ PDF

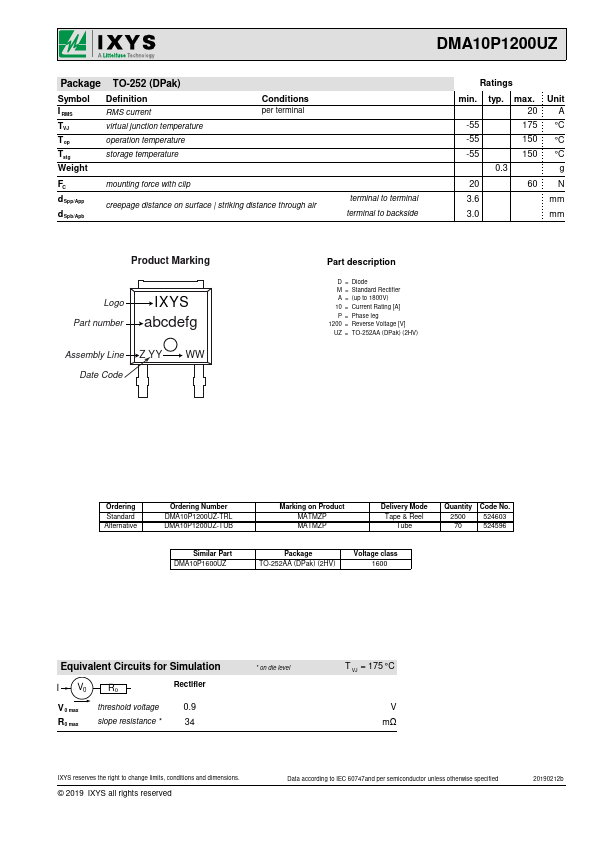

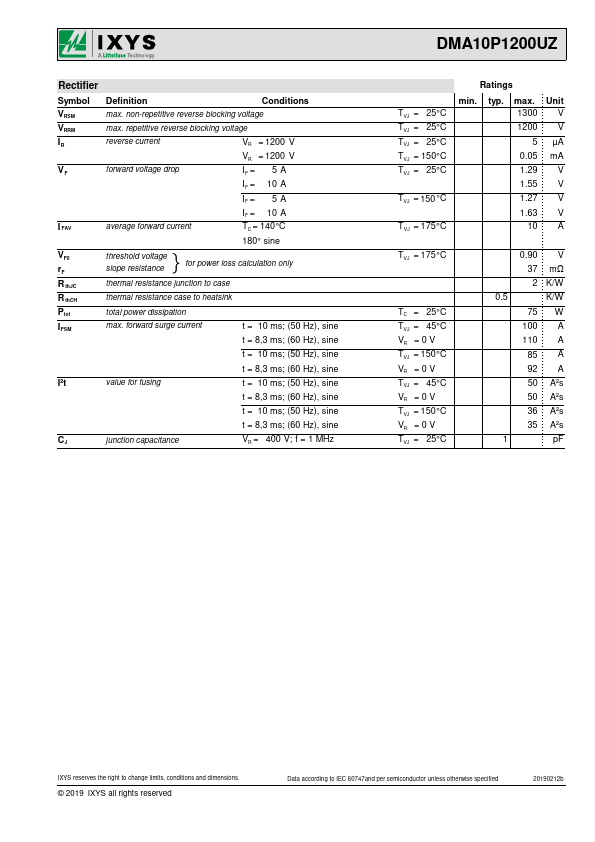

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DMA10P1200UZ
Manufacturer
IXYS
File Size
193.36 KB
Datasheet
DMA10P1200UZ-IXYS.pdf
Description
Standard Rectifier

Features

* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very low forward voltage drop
* Improved thermal behaviour
* High commutation robustness

Applications

* Diode for main rectification
* For single and three phase bridge configurations Package: TO-252 (DPak)
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0
* High creepage distance between terminals Disclaimer Notice Information furnished is believed to be
