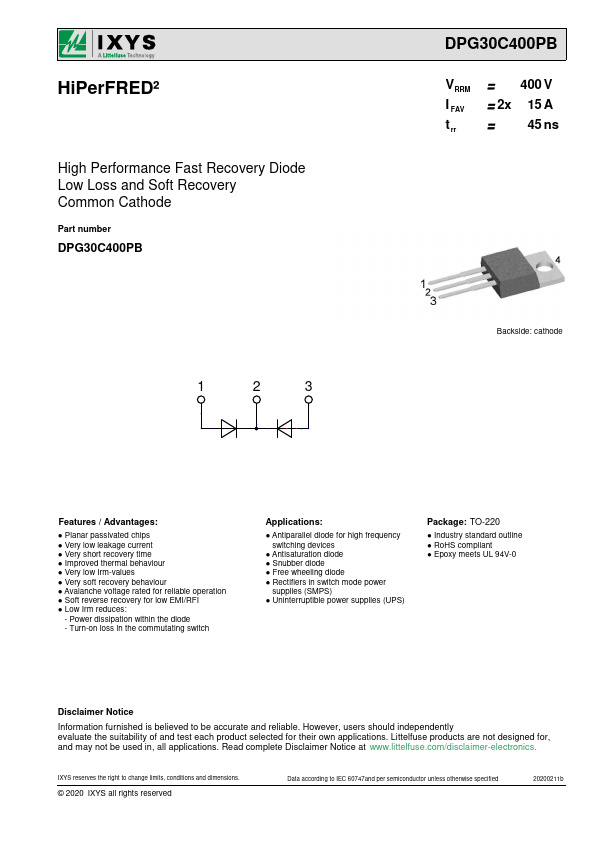

DPG30C400PB - High Performance Fast Recovery Diode

IXYS

DPG30C400PB Datasheet Preview — Preview of DPG30C400PB PDF

Datasheet Details

Part number	DPG30C400PB
Manufacturer	IXYS
File Size	136.77 KB
Description	High Performance Fast Recovery Diode
Datasheet	DPG30C400PB-IXYS.pdf

DPG30C400PB Product details

Description

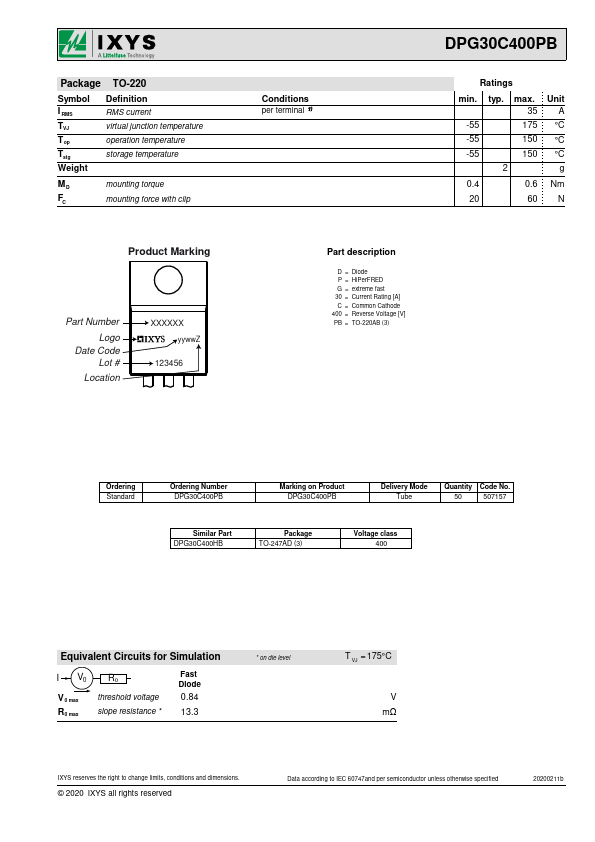

D = Diode P = HiPerFRED G = extreme fast 30 = Current Rating [A] C = Common Cathode 400 = Reverse Voltage [V] PB = TO-220AB (3) Ordering Standard Ordering Number DPG30C400PB Marking on Product DPG30C400PB Delivery Mode Tube Quantity Code No.50 507157 Similar Part DPG30C400HB Package TO-247AD (3) Voltage class 400 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 0.84 13.3 on die level T VJ = 175°C V mΩ IXYS res

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
