DPG60C200QB High Performance Fast Recovery Diode

IXYS

DPG60C200QB Description

HiPerFRED² High Performance Fast Recovery Diode Low Loss and Soft Recovery Common Cathode Part number DPG60C200QB 1 2 3 DPG60C200QB VRRM I FAV t .
D = Diode P = HiPerFRED G = extreme fast 60 = Current Rating [A] C = Common Cathode 200 = Reverse Voltage [V] QB = TO-3P (3) Ordering Standard Order.

DPG60C200QB Features

* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI

DPG60C200QB Applications

* Antiparallel diode for high frequency switching devices
* Antisaturation diode
* Snubber diode
* Free wheeling diode
* Rectifiers in switch mode power supplies (SMPS)
* Uninterruptible power supplies (UPS) Package: TO-3P
* Industry standard outline compatible with TO-

📥 Download Datasheet

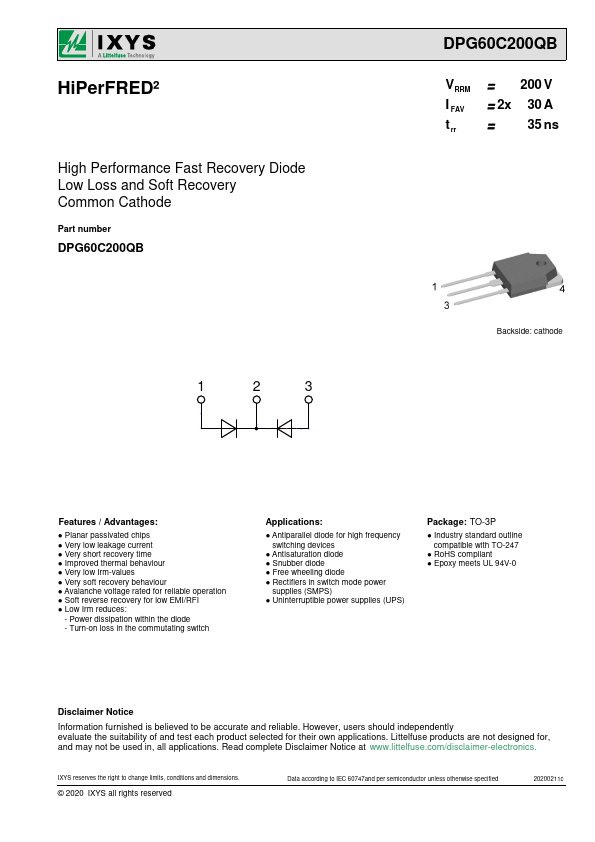

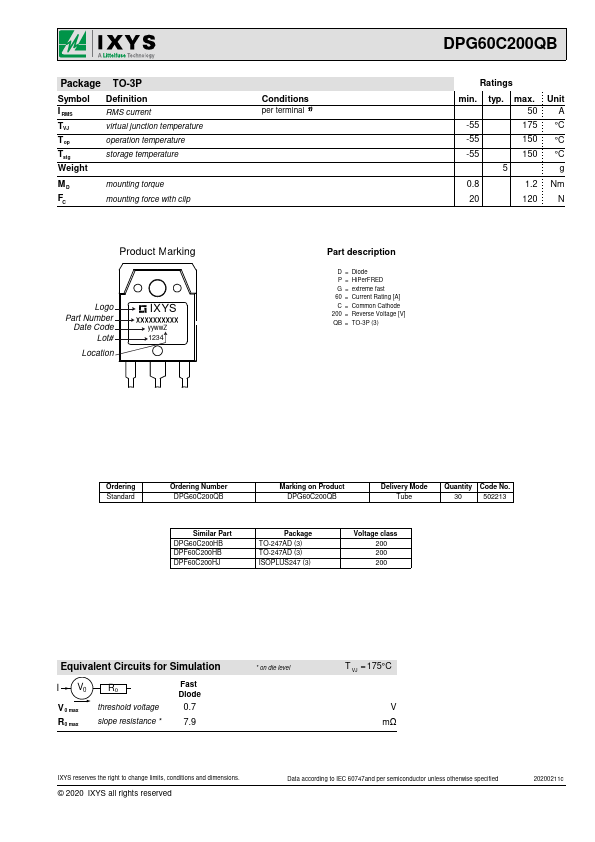

DPG60C200QB Datasheet Preview — Preview of DPG60C200QB PDF

Datasheet Details

Part number: DPG60C200QB
Manufacturer: IXYS
File Size: 190.66 KB
Datasheet: DPG60C200QB-IXYS.pdf
Description: High Performance Fast Recovery Diode
