DSB20C60PN, Schottky Diode

Schottky Diode Gen ² High Performance Schottky Diode Low Loss and Soft Recovery Common Cathode Part number DSB20C60PN 1 23 DSB20C60PN VRRM I FAV VF .

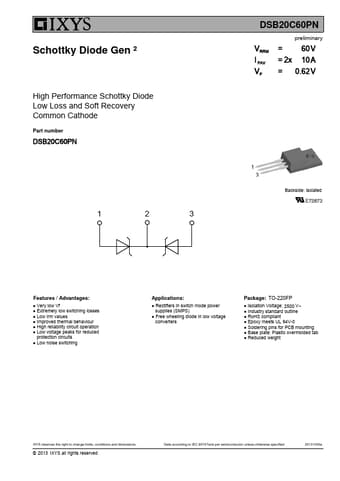

datasheet Preview Page 1 from Datasheet4u.com

DSB20C60PN-IXYS.pdf

DSB20C60PN Datasheet Preview — Preview of DSB20C60PN PDF

Datasheet Details

Part number:

DSB20C60PN

Manufacturer:

IXYS

File Size:

87.50 KB

Description:

Schottky Diode

Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* Low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters Package: TO-220FP
* Isolation Voltage: 2500 V~
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0
* Soldering pins for PCB mounting
* Base plate: Plast
