DSB30C45PB Schottky Diode

DSB30C45PB Description

Schottky Diode Gen ² High Performance Schottky Diode Low Loss and Soft Recovery Common Cathode Part number DSB30C45PB 1 23 DSB30C45PB VRRM I FAV VF .

DSB30C45PB Features

* / Advantages:
* Very low Vf
* Extremely low switching losses
* Low Irm values
* Improved thermal behaviour
* High reliability circuit operation
* Low voltage peaks for reduced protection circuits

DSB30C45PB Applications

* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters Package: TO-220
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0 IXYS reserves the right to change limits, conditions and dimensions. © 2013 IXYS all rights res

📥 Download Datasheet

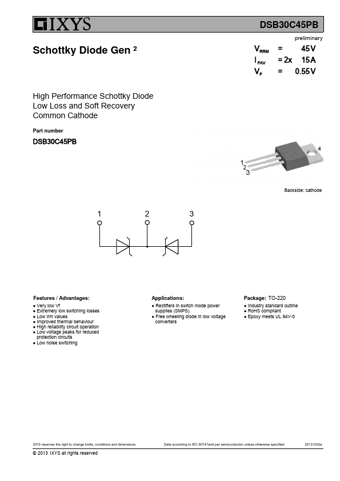

Preview of DSB30C45PB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSB30C45PB
Manufacturer
IXYS
File Size
90.11 KB
Datasheet
DSB30C45PB-IXYS.pdf
Description
Schottky Diode
