* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI
DSEP12-12A Datasheet (117.38 KB)
DSEP12-12A
IXYS
117.38 KB

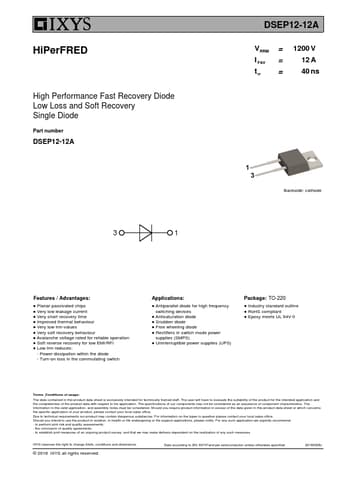

High performance fast recovery diode.
HiPerFRED
High Performance Fast Recovery Diode Low Loss and Soft Recovery Single Diode
Part number
DSEP12-12A
3
1
DSEP12-12A
VRRM = 1200 V
I FAV
.
