DSP25-16A - Standard Rectifier

Datasheet Summary

Features

  • / Advantages:.
  • Planar passivated chips.
  • Very low leakage current.
  • Very low forward voltage drop.
  • Improved thermal behaviour.

📥 Download Datasheet

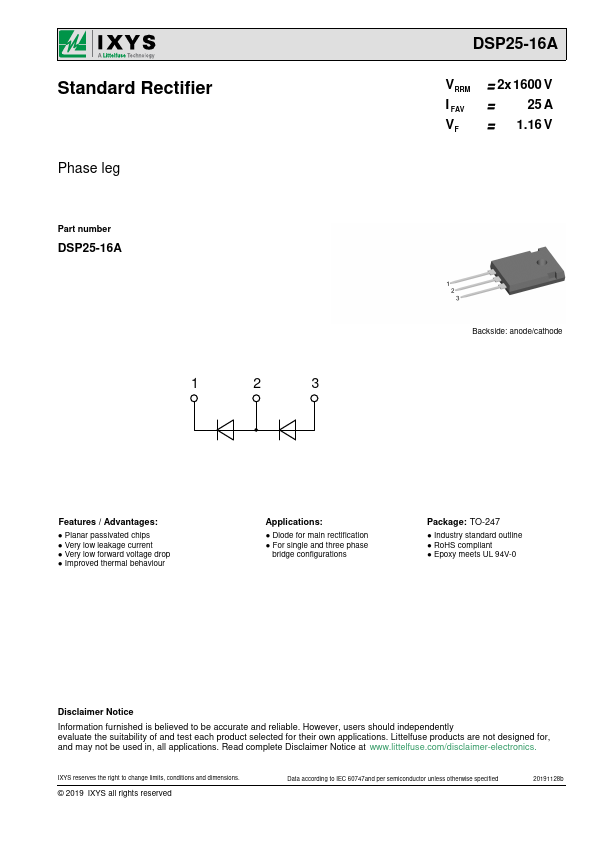

Datasheet preview – DSP25-16A

Datasheet Details

Part number DSP25-16A
Manufacturer IXYS
File Size 370.66 KB
Description Standard Rectifier
Datasheet download datasheet DSP25-16A Datasheet

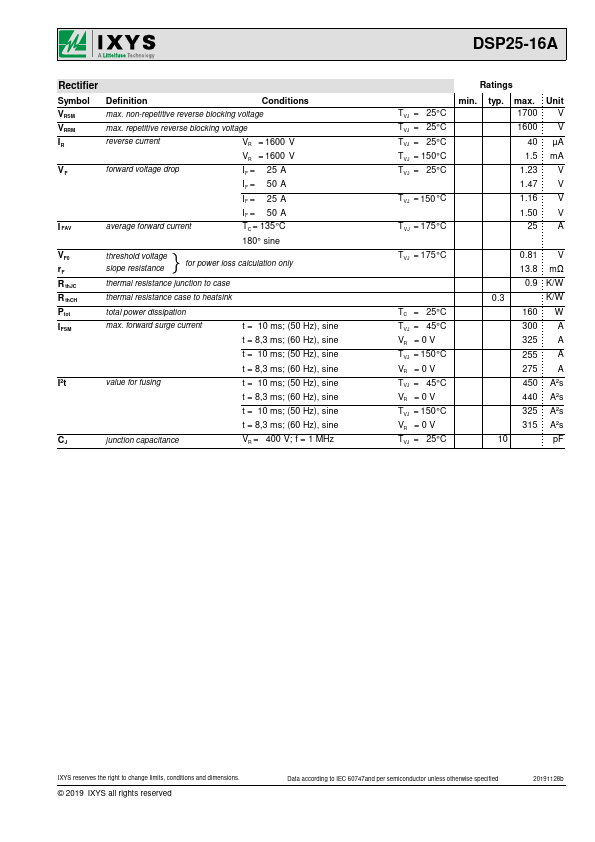

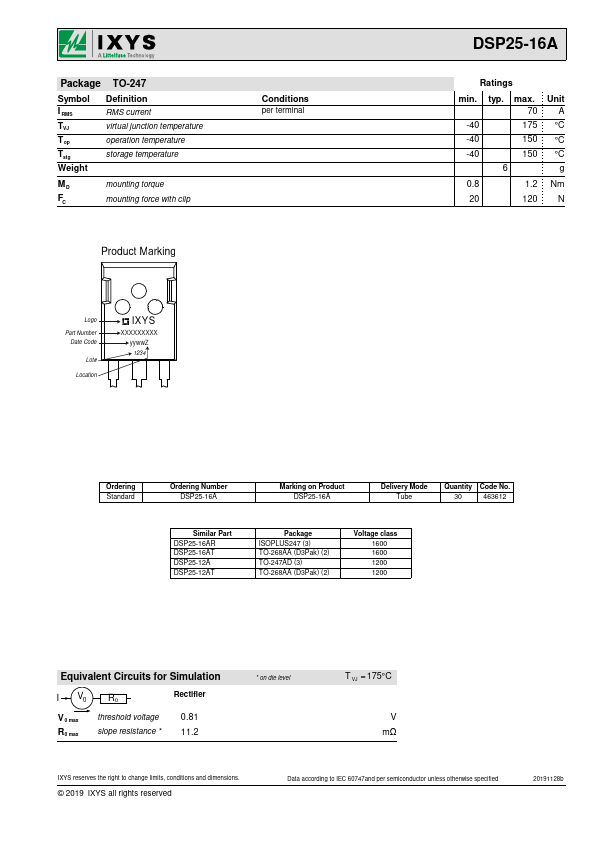

Additional preview pages of the DSP25-16A datasheet.

📁 Similar Datasheet

  • DSP201 - DSP-Compatible Single/Dual DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DSP202 - DSP-Compatible Single/Dual DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DSP2A-DC12V - small polarized power relays (Panasonic)
  • DSP2A-DC12V-R - small polarized power relays (Panasonic)
  • DSP2A-DC24V - small polarized power relays (Panasonic)
  • DSP2A-DC24V-R - small polarized power relays (Panasonic)
  • DSP2a-DC3V - small polarized power relays (Panasonic)
  • DSP2A-DC5V - small polarized power relays (Panasonic)
  • DSP2A-DC5V-R - small polarized power relays (Panasonic)
  • DSP2a-DC6V - small polarized power relays (Panasonic)
Other Datasheets by IXYS

Full PDF Text Transcription

Click to expand full text
Standard Rectifier Phase leg Part number DSP25-16A 1 2 3 DSP25-16A VRRM I FAV VF = 2x 1600 V = 25 A = 1.16 V Backside: anode/cathode Features / Advantages: ● Planar passivated chips ● Very low leakage current ● Very low forward voltage drop ● Improved thermal behaviour Applications: ● Diode for main rectification ● For single and three phase bridge configurations Package: TO-247 ● Industry standard outline ● RoHS compliant ● Epoxy meets UL 94V-0 Disclaimer Notice Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at www.littelfuse.
