DSP45-12AZ Standard Rectifier

DSP45-12AZ Description

Standard Rectifier Phase leg Part number DSP45-12AZ 1 4 3 DSP45-12AZ VRRM I FAV VF = 2x 1200 V = 45 A = 1,23 V Backside: anode/cathode Feat.

DSP45-12AZ Features

* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very low forward voltage drop
* Improved thermal behaviour
* High commutation robustness

DSP45-12AZ Applications

* Diode for main rectification
* For single and three phase bridge configurations Package: TO-268AA (D3Pak-HV)
* Industry standard outline
* RoHS compliant
* Epoxy meets UL 94V-0 Disclaimer Notice Information furnished is believed to be accurate and reliable. However, users sh

📥 Download Datasheet

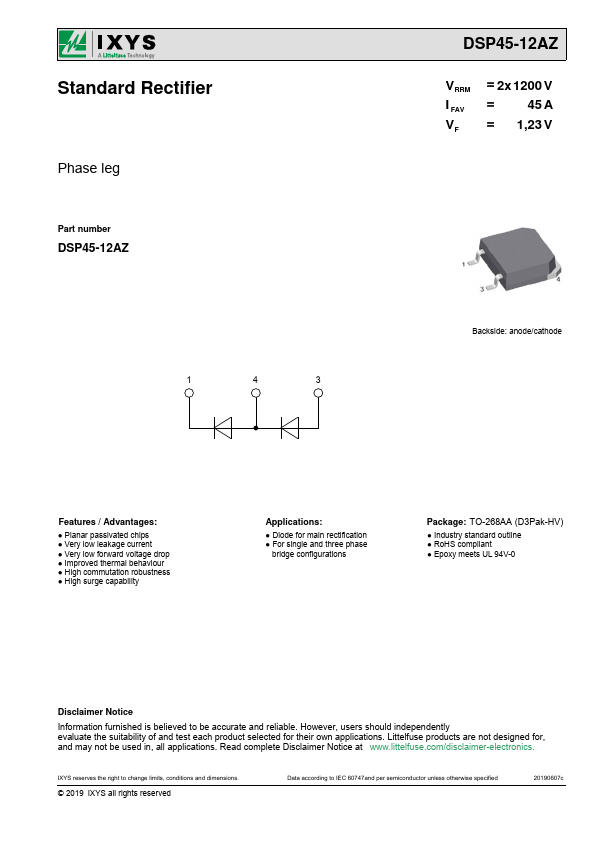

Preview of DSP45-12AZ PDF

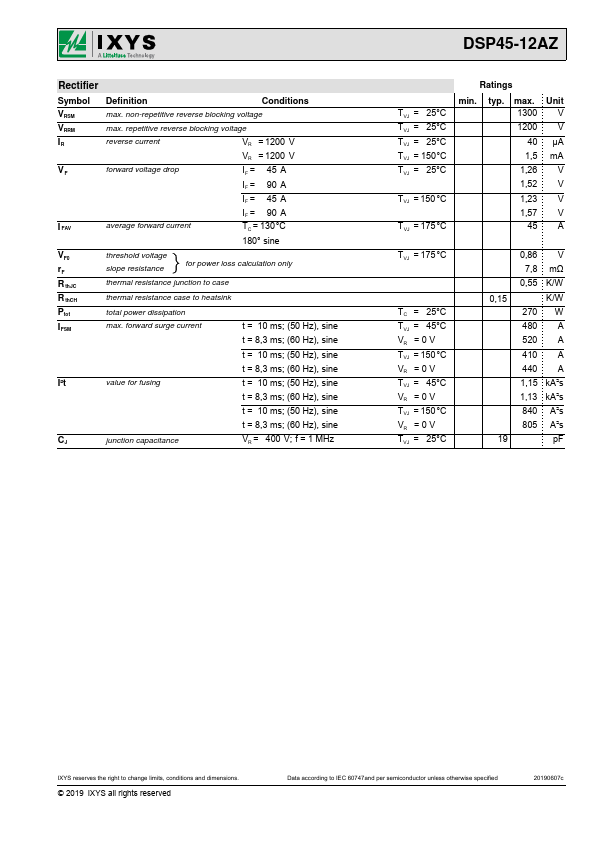

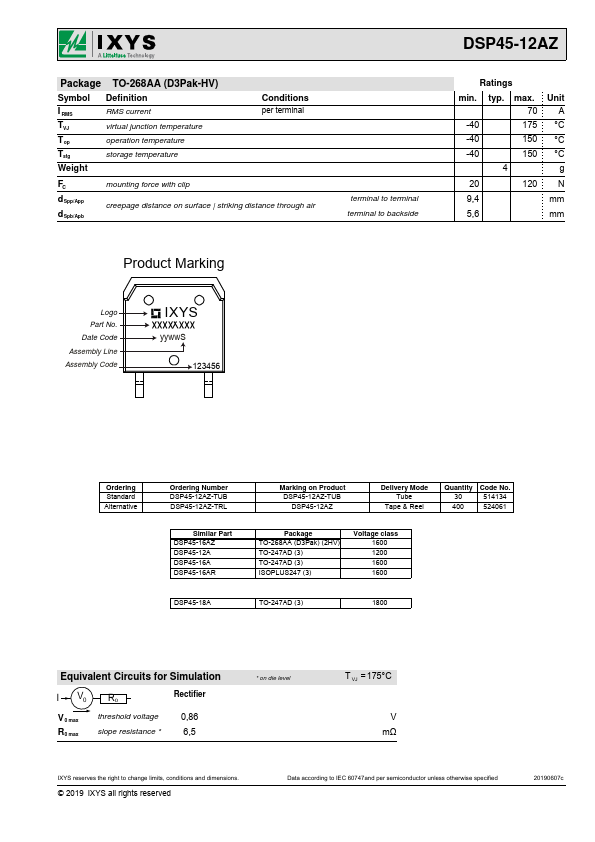

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DSP45-12AZ
Manufacturer
IXYS
File Size
143.68 KB
Datasheet
DSP45-12AZ-IXYS.pdf
Description
Standard Rectifier
